SYMBOL
DESCRIPTION

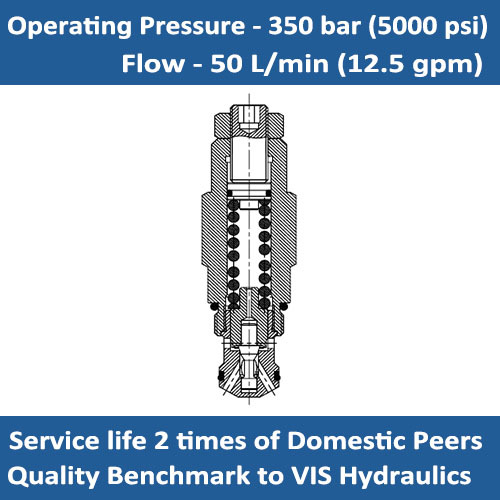

The E-RVC0.M22 is a screw-in, cartridge style, direct acting, poppet type, normally closed hydraulic relief valve.
OPERATION
The E-RVC0.M22 typically used to protect hydraulic components from pressure transients. When the pressure at the Inlet (1) reaches the valve setting, the valve starts to open to tank (2) throttling flow to minimize the pressure rise.
The innovative geometry of the deflector provides in fact a very low rise rate, and the poppet design guarantee great stability.
FEATURES
* Adjustments cannot be backed out of the valve.
* Compact size.
SPECIFICATIONS:
Working Pressure: 350 bar (5000 psi)
Max. Flow: 50 L/min (12.5 gpm)
Max. Internal Leakage: 0.25 cc/minute (5 drops/minute) max. to 80% of nominal setting
Flow Accuracy: 10% from 33 - 100% of rated flow
Temperature Range: -30°C ~ +110 °C (with Buna N seals)
Fluids: Mineral based or synthetic hydraulic fluid with lubricating properties at viscosities of
Cavity: VH045

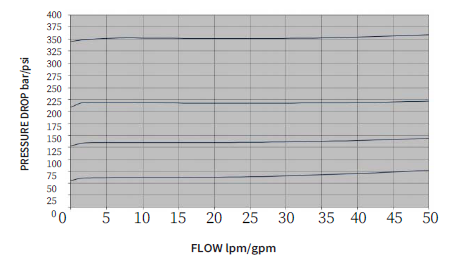

PERFORMANCE:

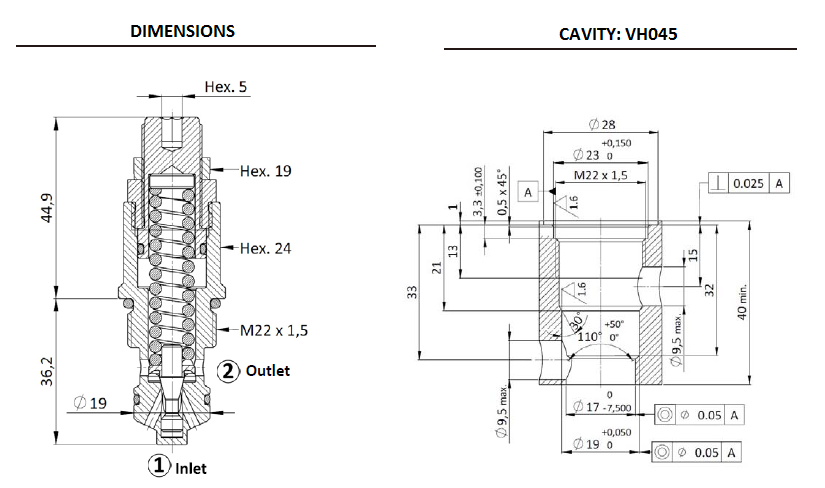

DIMENSIONS

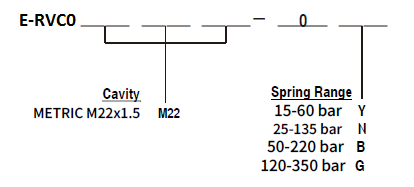

ORDER CODE:
