SYMBOL
DESCRIPTION

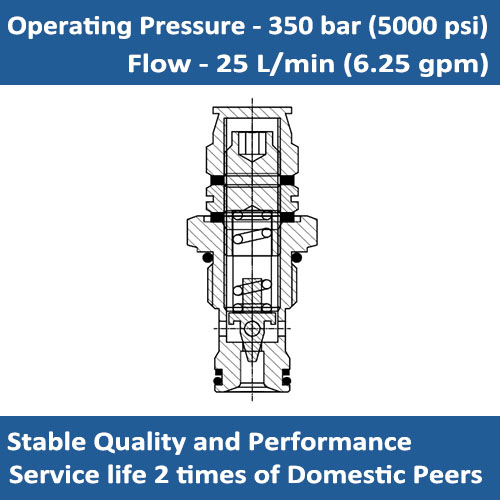

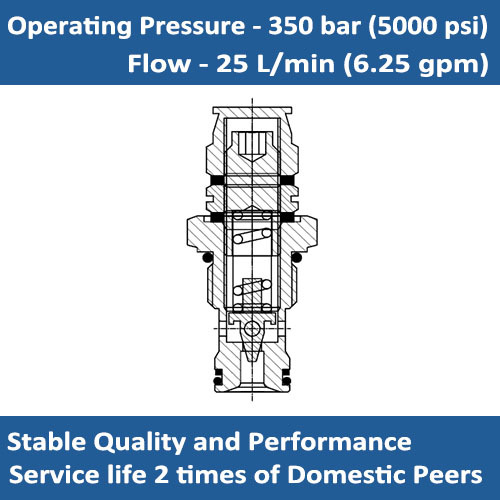

The E-RVB0.S09 is a screw-in, cartridge style, direct acting, poppet type, normally closed hydraulic relief valve.
OPERATION
The E-RVB0.S09 screw-in, cartridge style, direct acting, poppet type, normally closed hydraulic relief valve. It is typically used to protect hydraulic components from pressure transients.
FEATURES
* Adjustments cannot be backed out of the valve.
* Compact size.
SPECIFICATIONS:
Working Pressure: 350 bar (5000 psi)
Max. Flow: 25 L/min (6.25 gpm)
Max. Internal Leakage: 0.25 cc/minute (5 drops/minute) max.
Temperature Range: -30°C ~ +110 °C (with Buna N seals)
Fluids: Mineral based or synthetic hydraulic fluid with lubricating properties at viscosities of
Cavity: VC08S-2

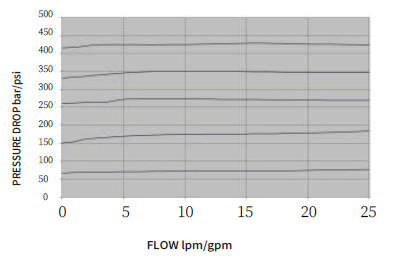

PERFORMANCE (Cartridge Only):

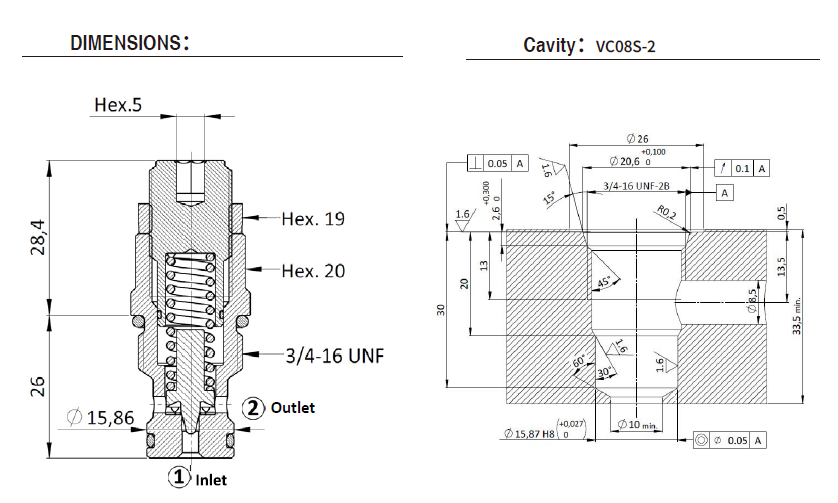

DIMENSIONS

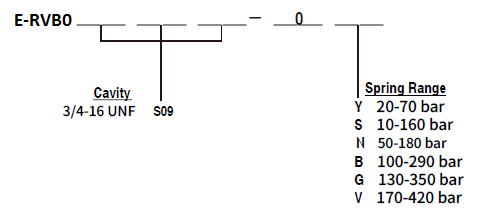

ORDER CODE:
