SYMBOL
DESCRIPTION

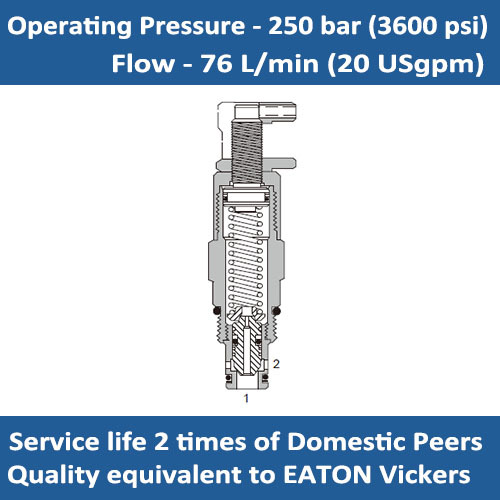

The E-RV3-10 is a fast, direct, differential threaded cartridge relief valve to protect the actuator from pressure impact damage.
OPERATION
The E-RV3-10 keeps the oil port 2 to the oil port 1 closed until the oil port 2 sealing diameter between the valve seat and the valve poppet.
FEATURES
* Adjustments cannot be backed out of the valve.
* Compact size.
SPECIFICATIONS:
Working Pressure: 250 bar (3600 psi)
Max. Flow: 76 L/min (20 USgpm)
Max. Internal Leakage: 0.30 cc/minute (5 drops/minute) max. to 85% of nominal setting
Temperature Range: -40°C ~ +120 °C (with Buna N seals)
Fluids: Mineral based or synthetic hydraulic fluid with lubricating properties at viscosities of
Cavity: VC10-2

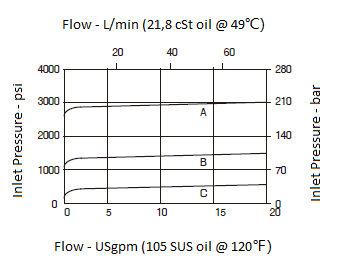

PERFORMANCE (Cartridge Only):

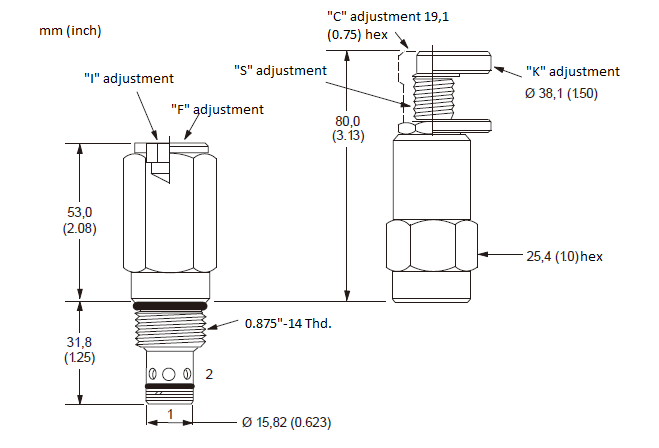

DIMENSIONS

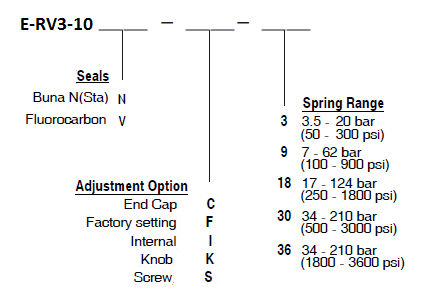

ORDER CODE:
