SYMBOL
DESCRIPTION
E-RV16-26 is a screw in, cartridge style, pilot operated (two stage), spool type relief valve, intended for use as a pressure limiting device in demanding hydraulic circuits which require fast response and low hysteresis.
OPERATION
The E-RV16-26 blocks flow from port 1 to port 2 until sufficient pressure is present at port 1 to force the piloting relief off its seat, allowing the main (second stage) spool to shift, opening port 1 to port 2.
The cartridge offers smooth transition in response to load changes in demanding hydraulic circuits.
NOTE: the E-RV16-26 valve cannot be used in cross-over relief applications.
SPECIFICATIONS:
Operating Pressure: 240 bar (3500 psi)
Flow: 302.8 L/min (80 gpm) See performance Chart
Internal Leakage:
At port 2 Max. at 85% of crack pressure.
115ml/min (7 in³/min) max. Note: Pressure setting below 138 bar (2000 psi)
197ml/min (30 in³/min) max. Note: Pressure setting above 138 bar (2000 psi) or higher
Crack Pressure Defined: pressure evident at 7.61 lpm (2 gpm) attained
Reseat Pressure: Nominal 90% of crack pressure
Standard Spring Ranges:
03: 9.66 - 20.70 bar (140 - 300 psi);
06: 15.87 - 41.41 bar (230 - 600 psi);
15: 36.63 - 103.52 bar (530 - 1500 psi);
35: 82.82 - 241.55 bar (1200 - 3500 psi)
Temperature: -40°C ~ +120 °C (with Standard Buna N seals)
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus);
Cavity: VC16-2
PERFORMANCE:

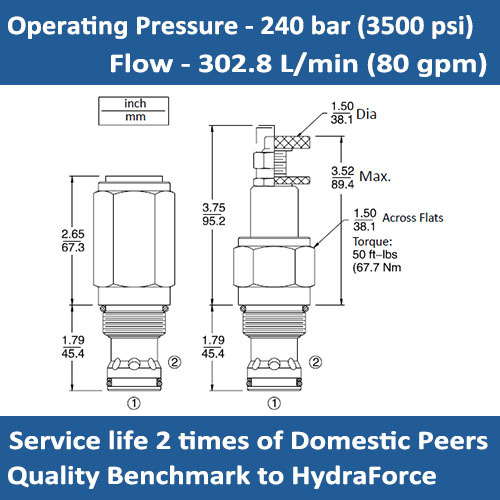

DIMENSIONS
ORDER CODE:
