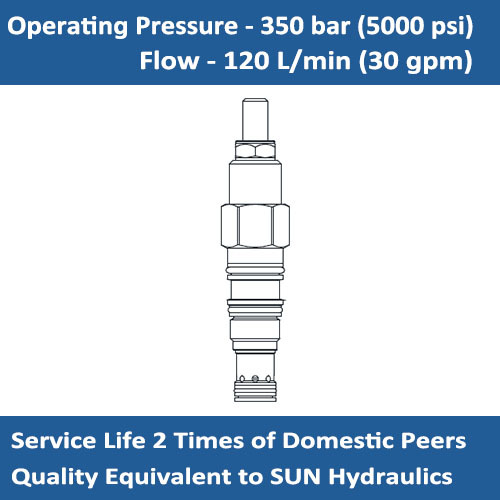

E-RSFC Pilot-operated, balanced piston sequence valve

Item No.: E-RSFC
Pilot-operated, balanced piston sequence valves. SUN Hydraulics RSFC equivalent.
Description Review
Description

SYMBOL



DESCRIPTION
Pilot-operated, balanced piston sequence valves will supply a secondary circuit with flow once the pressure at the inlet (port 1) has exceeded the valve setting.



OPERATION

The pressure setting of a sequence valve controls the pressure at port 1 relative to the pressure at the drain (port 3). These valves are insensitive to back pressure at port 2 (sequence), up to the valve setting. They may be used to regulate pressure in place of 2-port relief valves if there is pressure in the return line.

FEATURES

* The main stage orifice is protected by a 150 micron stainless steel screen.

* Minimum setting is 75 psi (5 bar) for all spring ranges.

* Pressure at port 3 is directly additive to the valve setting at a 1:1 ratio and should not exceed 5000 psi (350 bar).

* Pilot flow continues to increase as the pressure at port 1 (inlet), relative to the pressure at port 3 (drain), rises above the valve setting.



SPECIFICATIONS:

Max. Operating Pressure: 350 bar (5000 psi)

Capacity: 120 L/min (30 gpm)

Factory Pressure Settings Established at: 15 L/min. (4 gpm)

Response Time - Typical: 10 ms

Maximum Valve Leakage at 110 SUS (24 cSt): 50 cc/min. (3 in³/min.) at 70 bar (1000 psi)

Temperature: - 40℃ ~ + 120℃

Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus)

Cavity: T-2A

Capacity Model Cavity Installation Torque
30 L/min (7.5 gpm) E-RSBC-LAN T-163A 35 - 40 Nm
60 L/min (15 gpm) E-RSDC-LAN T-11A 40 - 50 Nm
120 L/min (30 gpm) E-RSFC-LAN T-2A 60 - 70 Nm
240 L/min (60 gpm) E-RSHC-LAN T-17A 200 - 215 Nm
480 L/min (120 gpm) E-RSJC-LAN T-19A 465 - 500 Nm



PERFORMANCE:
