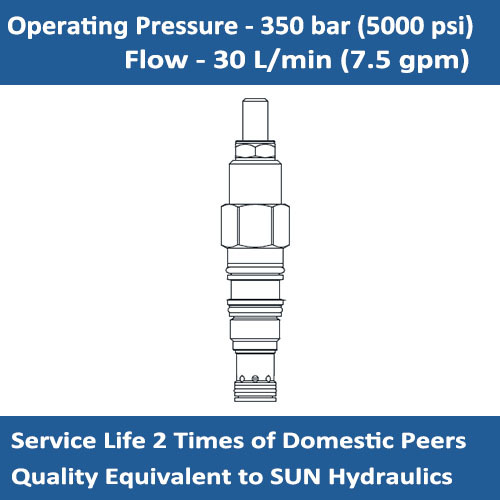

E-RSBC Pilot-operated, balanced piston sequence valve
SYMBOL
OPERATION
Pilot-operated, balanced piston sequence valves will supply a secondary circuit with flow once the pressure at the inlet (port 1) has exceeded the valve setting. The pressure setting of a sequence valve controls the pressure at port 1 relative to the pressure at the drain (port 3). These valves are insensitive to back pressure at port 2 (sequence), up to the valve setting. They may be used to regulate pressure in place of 2-port relief valves if there is pressure in the return line.
SPECIFICATIONS:
Working Pressure: 350 bar (5000 psi)
Flow Rating: 30 lpm (7.5 gpm)
Maximum Valve Leakage at Reseat: 2 in³/min.
Response Time - Typical: 10 ms
Cavity: T-163A
Installation Torque: 35 - 40 Nm
Temperature Range: -30 ~ +120 °C (with Buna N seals)
Filtration: 25μm or better
Fluids: Mineral-based fluids with viscosities of 7.4 to 420 cSt.
PERFORMANCE:
ORDER CODE:
