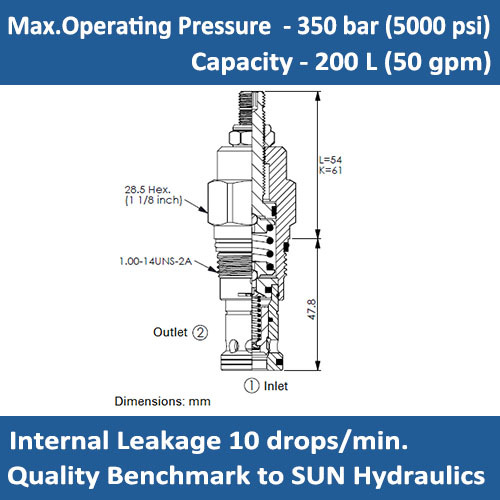

E-RQGB Kick-down, pilot-operated, balanced piston relief valve
SYMBOL
OPERATION
Kick-down relief cartridges act similar to a circuit breaker in an electrical system. The valves will kick completely open and remain open once the pressure at the inlet (port 1) exceeds the valve settting, creating an unrestricted flow path from port 1 to tank (port 2). The valve remains open as long as the pressure at port 1 exceeds the pressure at port 2. To reset the valve, flow from port 1 to port 2 must cease and pressure at port 2 must be equal to or greater than the pressure at port 1.
SPECIFICATIONS:
Max. Operating Pressure: 350 bar (5000 psi)
Flow: 200 L/min (50 gpm)
Internal Leakage: 3 in³/min.@1000 psi
Response Time - Typical: 25 ms
Temperature: - 30°C to +120°C (- 22°F to +250°F)
Cavity: T-3A
Fluids: Mineral-based fluids with viscosities of 7.4 to 420 cSt.
Installation Turque: 60 - 70 Nm
PERFORMANCE:
ORDER CODE:
