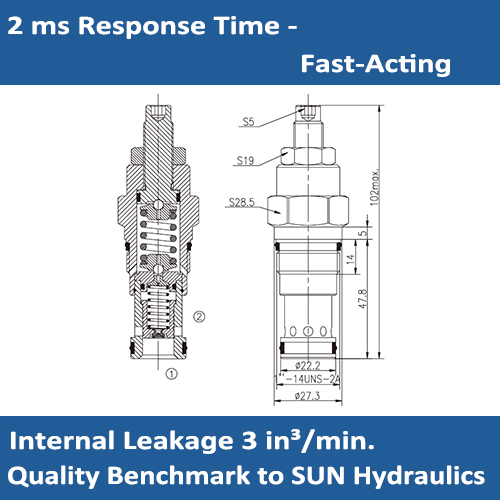

E-RPGE PILOT-OPERATED RELIEF VALVES (FAST-ACTING)

Item No.: E-RPGE
Fast-acting, pilot-operated, balanced piston relief cartridges are normally closed, pressure-limiting valves used to protect hydraulics components from pressure transients.
Description Review
Description

E-RPGE PILOT-OPERATED RELIEF VALVES (FAST-ACTING)



SYMBOL



OPERATION

Fast-acting, pilot-operated, balanced piston relief cartridges are normally closed, pressure-limiting valves used to protect hydraulics components from pressure transients. Fast opening and closing is gained at the expense of smoothness. When the pressure at the inlet (port 1) reaches the valve setting, the valve starts to open to tank (port 2), throttling flow to limit the pressure rise. These valves have low pressure rise vs. flow and are very fast.

Back pressure on the tank port (port 2) is directly additive to the valve setting at a 1:1 ratio.



SPECIFICATIONS:

Max.Setting: 350 bar (5000 psi)

Capacity: 50 gpm (200L/min)

Internal Leakage: 50cc/min at 70 bar (3 in³/min.@1000 psi)

Response Time – Typical: 2 ms

Pilot Ratio: 1:1

Temperature: - 30°C to 100 °C (with Standard Buna N seals)

Filtration: 20μm or better

Cavity: SUN T-3A

Installation Torque: 45 – 50Nm



PERFORMANCE:





ORDER CODE:



AAK Hydraulic Valve is a top manufacturer for Hydraulic Cartridge Relief Valves in Ningbo China since 2009.

We guarantee quality for 3 years for non-standard customized valves: No leakage, No Noise, No Vibration.

Contact us to customize your valves and promote your business with our premium quality!
