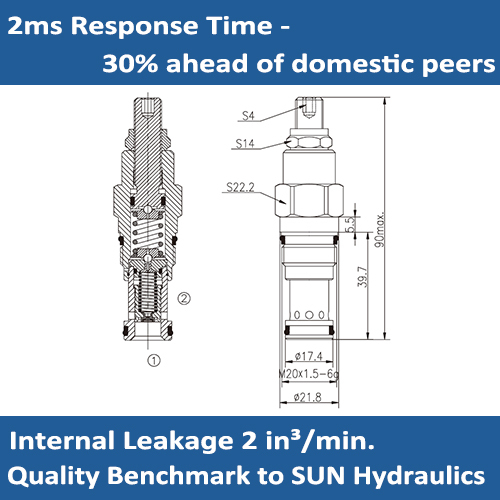

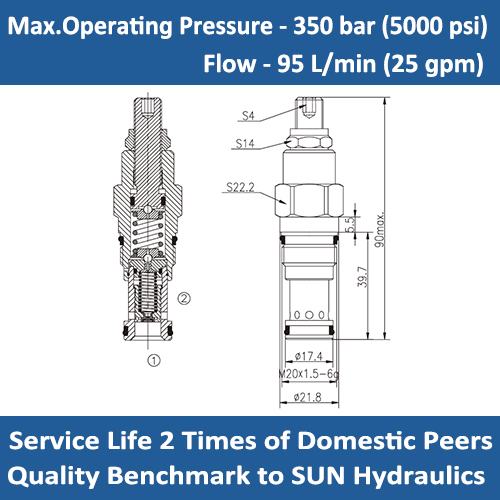

E-RPEE PILOT-OPERATED RELIEF VALVES (FAST-ACTING)
SYMBOL
OPERATION
Fast-acting, pilot-operated, balanced piston relief cartridges are normally closed, pressure-limiting valves used to protect hydraulics components from pressure transients. Fast opening and closing is gained at the expense of smoothness. When the pressure at the inlet (port 1) reaches the valve setting, the valve starts to open to tank (port 2), throttling flow to limit the pressure rise. These valves have low pressure rise vs. flow and are very fast.
Back pressure on the tank port (port 2) is directly additive to the valve setting at a 1:1 ratio.
SPECIFICATIONS:
Max.Setting: 350 bar (5000 psi)
Capacity: 25 gpm (95L/min)
Internal Leakage: 30cc/min at 70 bar (2 in³/min.@1000 psi)
Response Time – Typical: 2 ms
Pilot Ratio: 1:1
Temperature: - 30°C to 100 °C (with Standard Buna N seals)
Filtration: 20μm or better
Cavity: SUN T-10A
Installation Torque: 45 – 50Nm
PERFORMANCE:
ORDER CODE:
