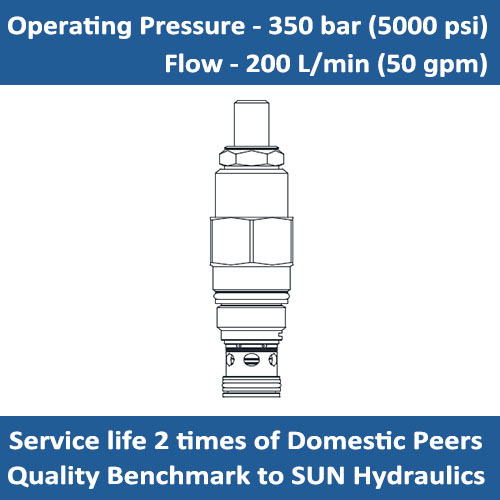

E-RDFA Direct-Acting relief valve

Item No.: E-RDFA
Direct-acting relief cartridges are normally closed, pressure-limiting valves used to protect hydraulic components from pressure transients. SUN Hydraulics RDFA equivalent.
Description Review
Description

SYMBOL



DESCRIPTION

Direct-acting relief cartridges are normally closed, pressure-limiting valves used to protect hydraulic components from pressure transients.


OPERATION
When the pressure at the inlet (port 1) reaches the valve setting, the valve starts to open to tank (port 2), throttling flow to limit the pressure rise. These valves are smooth and quiet, essentially zero leak, dirt tolerant, immune to silting and are very fast.


FEATURES

* Will accept maximum pressure at port 2

* Suitable for use in cross port relief circuits.

* The seals on the adjust screw are exposed to system pressure which means this valve can only be adjusted when the pressure is removed.

* Valve is relatively insensitive to varying oil temperatures and oil borne contamination.

* Suitable for use in load holding applications


SPECIFICATIONS:

Max.Setting: 350 bar (5000 psi)

Capacity: 200 L/min (50 gpm)

Maximum Valve Leakage at Reseat: 0.7 cc/min. (10 drops/min.)
Factory Pressure Settings Established at: 15 L/min (4 gpm)
Response Time - Typical: 2 ms
Reseat: >85% of crack setting
Response Time – Typical:
2 ms

Temperature: - 40°C ~ +120 °C
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus)

Cavity: T-3A

Flow Model Cavity Installation Torque
45 L/min E-RDBA-LAN T-162A 35 - 40 Nm
95 L/min E-RDDA-LAN T-10A 40 - 50 Nm
200 L/min E-RDFA-LAN T-3A 60 - 70 Nm
380 L/min E-RDHA-LAN T-16A 200 - 215 Nm
760 L/min E-RDJA-LAN T-18A 465 - 500 Nm


PERFORMANCE



DIMENSIONS & ORDER CODE:


AAK Hydraulic Valve is a top manufacturer for Hydraulic Screw-in Cartridge Valves
 in Ningbo China since 2009.

We guarantee quality for 3 years for non-standard customized valves: No leakage, No Noise, No Vibration.

Contact us to customize your valves and promote your business with our premium quality!
