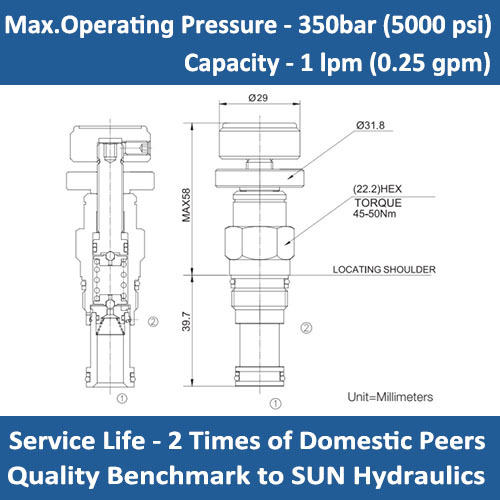

E-RBAC Direct-acting relief valve - pilot capacity
SYMBOL
OPERATION
Direct-acting, pilot relief cartridges are used to remotely control the pressure setting of other pilot-operated valves. Because capacity is limited to pilot flow, these valves should be used with other higher flow valves.
SPECIFICATIONS:
Max. Operating Pressure: 350 bar (5000 psi)
Flow: 1 lpm (0.25 gpm)
Internal Leakage: 2 drops/min
Response Time - Typical: 2 ms
Temperature: - 40°C ~ +120°C
Cavity: T-10A
Fluids: Mineral-based fluids with viscosities of 7.4 to 420 cSt.

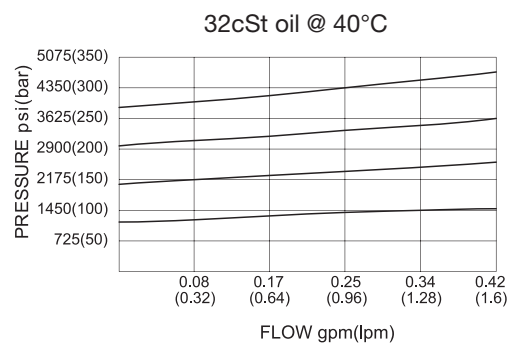

PERFORMANCE:

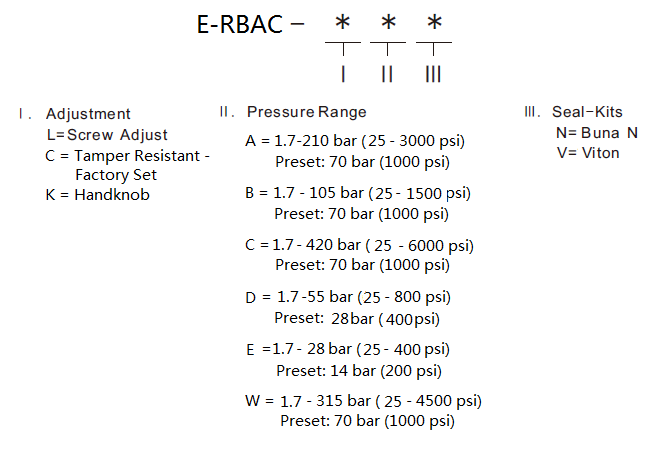

ORDER CODE:
