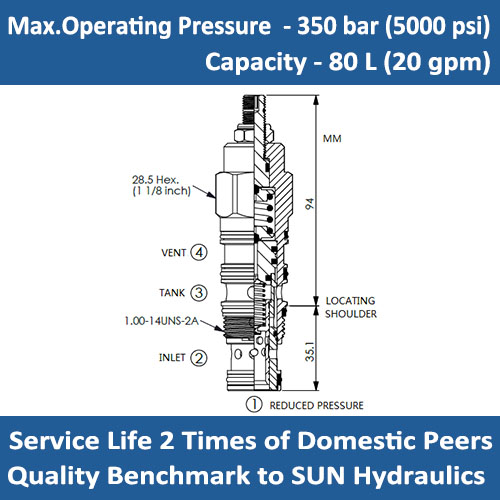

E-PVFB Ventable, pilot-operated, pressure reducing/relieving valve
SYMBOL
OPERATION
Ventable, pilot-operated pressure reducing/relieving valves reduce a high primary pressure at the inlet to a constant reduced pressure at port 1, with a full-flow relief function from port 1 to tank (port 3). The vent port (port 4) can be used as a means for remote control by pilot or 2-way valves.
SPECIFICATIONS:
Max. Operating Pressure: 350 bar (5000 psi)
Flow: 20 gpm (80L/min)
Control Pilot Flow: 10 - 15 in³/min.
Cavity: T-22A
Installation Torque: 27 - 32 Nm
Temperature: - 30 ℃ ~ + 120 ℃
Filtration: 25 μm or better
Fluids: Mineral-based fluids with viscosities of 7.4 to 420 cSt.
PERFORMANCE:
ORDER CODE:
