SYMBOL
DESCRIPTION
Electromagnetic drive, variable electrical parameters, 3-way, pressure compensated, spool type, normally open when off power, proportional flow control valve. It can be used as a priority flow regulating valve with pressure compensation to regulate and bypass flow. When the bypass line (oil port 2) is closed, it can also be used as a 2-way throttle pressure compensation flow regulating valve.
OPERATION
The E-PV76-31 flow of oil port 3 will be adjusted without being affected by the working pressure of the system. As the current in the solenoid valve increases, the output flow rate of E-PV76-31 will decrease.
Note: If the priority flow oil port of the device is closed by an external valve, the bypass pressure drop will increase if the valve is used for bypass flow control without a small leak from the priority port. Consult the factory.
Emergency manual operation: when starting: rotate clockwise for about 1 circle to reach the starting point. The maximum displacement can be reached by further rotation of about 5 turns. At the end: rotate counterclockwise for about 6 times to close in the positive direction.
FEATURES
* Excellent linearity and hysteresis characteristics.
* Hardened spool and cage for long life.
* Optional coil voltages and terminations.
* Efficient wet-armature construction.
* Cartridges are voltage-interchangeable.
* Unitized, molded coil design.
* Coil waterproofing standard.
* Manual Override option.
SPECIFICATIONS:
Operating Pressure: Port 1 (Inlet): 240 bar (3500 psi); Port 2 and 3: 207 bar (3000 psi)
Regulated Flow:
3-way: 75.7 lpm (18.9 gpm)
2-way: 79.5 lpm (20 gpm)
Max Input Flow:
bypass open, tee: 151.4 lpm (37.85 gpm)
Internal Leakage: 0.38 lpm at 207 bar with valve fully closed
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus);

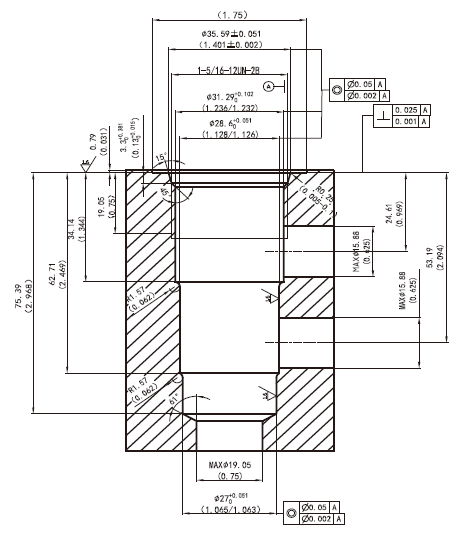

Cavity: VC16-3
Electrical Parameters (2 standard voltage ratings):
| Coil Voltage | Threshold Current | Max.Control Current |
| 12 VDC | 100 ± 50 mA | 1500 ± 100 mA |
| 24 VDC | 50 ± 25 mA | 750 ± 50 mA |

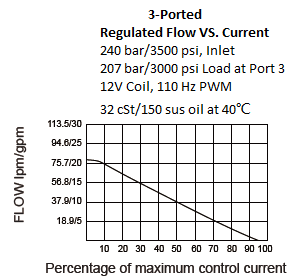

PERFORMANCE:

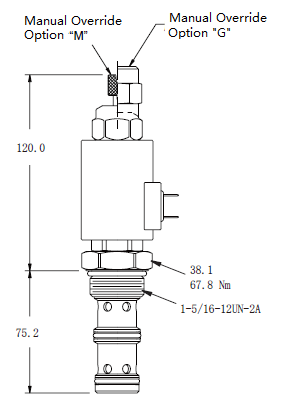

DIMENSIONS

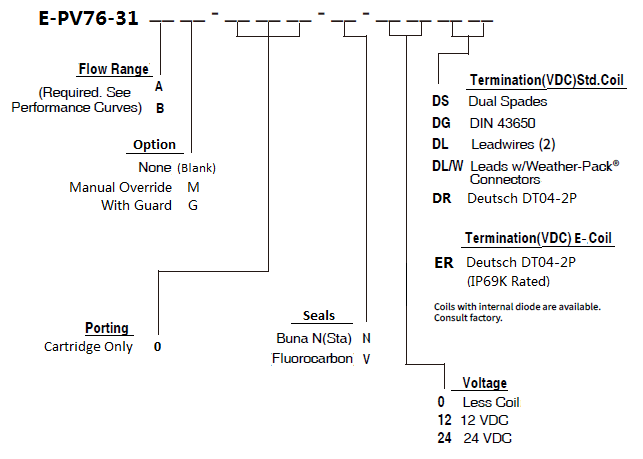

ORDER CODE:
