E-PV76-30A NORMALLY CLOSED PROPORTIONAL FLOW REGULATOR

Item No.: E-PV76-30A

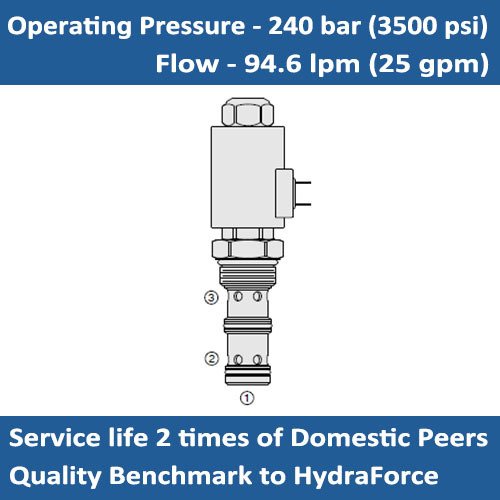

A solenoid-operated, electrically-variable, three-port, pressure-compensated, spool type, normally closed, proportional flow control valve. HydraForce PV76-30 equivalent.
Description Review
Description

SYMBOL



DESCRIPTION
A solenoid-operated, electrically-variable, three-port, pressure-compensated, spool-type, normally closed when de-energized, proportional flow control valve. It can be used as a priority-type flow regulator with pressure-compensated, regulated and bypass flow. It can also be used as a restrictive-type-2-way, pressure-compensated flow regulator when the bypass line (port 2) is blocked.



OPERATION

The E-PV76-30A will regulate flow out of port 3 regardless of system working pressure. With an increasing current applied to the solenoid, output flow will increase.
Note: When used as a bypass flow control in applications where the priority flow port will be blocked by external valving, bypass pressure drop will increase unless a small amount of leakage is provided for the priority port. Consult factory.
Operation of Manual Override: To Engage: Turn clockwise approximately 1 turn to reach start point. Continue another approximately 5 turns to full shift. To disengage: Turn counterclockwise approximately 6 turns to positive stop.


FEATURES

* Excellent linearity and hysteresis characteristics.
* Hardened spool and cage for long life.

* Optional coil voltages and terminations.

* Efficient wet-armature construction.

* Cartridges are voltage-interchangeable.

* Unitized, molded coil design.

* Coil waterproofing standard.

* Manual Override option.



SPECIFICATIONS:

Operating Pressure: Port 1 (Inlet): 240 bar (3500 psi); Port 2 and 3: 207 bar (3000 psi)

Regulated Flow Rate:

Range A: 3-Ported, 94.6 lpm (25.0 gpm)
Range A: 2-Ported, 85.2 lpm (22.5 gpm)
Nominal Input Flow:
Bypass Open, 3-Ported, 121 lpm (32.0 gpm)
Maximum Input Flow:

Bypass Open, 3-Ported, 151.4 lpm (40.0 gpm)

Internal Leakage: 0.38 lpm (0.10 gpm) at zero current
Electrical Parameters (2 standard voltage ratings):

Coil Voltage Threshold Current Max.Control Current
12 VDC 350 ± 100 mA 1600 ± 75 mA
24 VDC 150 ± 50 mA 800 ± 150 mA

Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus);

Cavity: VC16-3


PERFORMANCE:



DIMENSIONS



ORDER CODE:



AAK Hydraulic Valve is a top manufacturer for Electro-proportional Flow Regulator Cartridge Valves in Ningbo China since 2009.

We guarantee quality for 3 years for non-standard customized valves: No leakage, No Noise, No Vibration.

Contact us to customize your valves and promote your business with our premium quality!
