E-PRES50-30 PRESSURE REDUCING / RELIEVING CARTRIDGE VALVE

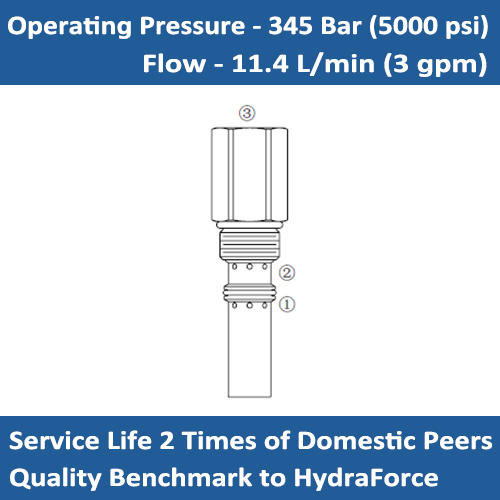

SYMBOL
DESCRIPTION
The E-PRES50-30 is a screw in, cartridge style, direct-acting, spool-type, hydraulic pressure reducing/relieving valve designed to act as a pressure regulating device for secondary circuits. It is intended for use in stable input flow circuits.
OPERATION
In its steady state, the E-PRES50-30 allows flow to pass bidirectionally from port 3 to port 2 with the spring chamber constantly drained at port 1. Upon attainment of a predetermined pressure at port 2, the cartridge shifts to block flow at port 3, thereby regulating pressure at port 2. In this mode, the valve will also relieve port 2 to port 1 at a variable value over the set reducing pressure.
FEATURES
* High Pressure steel adapter on inlet port 3 withstands up to 345 bar (5000 psi).
* Hardened spool and cage for long life.
SPECIFICATIONS:
Pressure Rating: 345 bar (5000 psi) Note: Port 3
137.9 bar (2000 psi) Note: Port 2
68.9 bar (1000 psi) Note: Port 1
Regulated pressure range: 31 to 55.2 bar (450 to 800 psi) Note: At 0.95 lpm (0.25 gpm)
Flow Rating: 11.4 lpm (3 gpm) See Performance Chart
Temperature: - 40℃ ~ + 120℃ (Std. Buna N Seals)
Cavity: 10-3
PERFORMANCE:
DIMENSIONS:
ORDER CODE:
