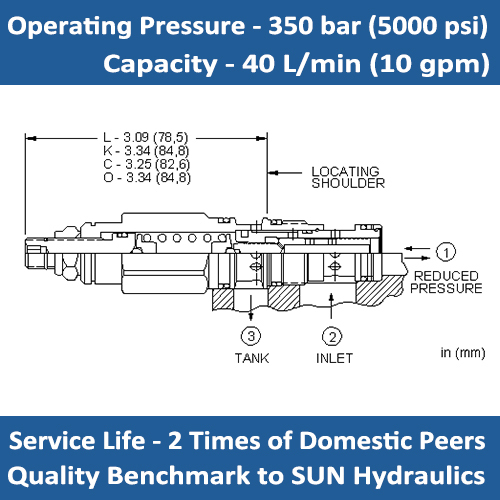

E-PRDB Direct-Acting, Pressure Reducing/Relieving Valve
SYMBOL
OPERATION
Direct-acting, pressure reducing/relieving valves reduce a high primary pressure at the inlet (port 2) to a constant reduced pressure at port 1, with a full-flow relief function from port 1 to tank (port 3). These valves incorporate a damped construction for stable operation allowing the use of high reduced pressure.
SPECIFICATIONS:
Max. Operating Pressure: 350 bar (5000 psi)
Flow: 10 gpm (40L/min)
Internal Leakage: 2 in³/min.
Temperature: - 35 to 120 °C (with Standard Buna N seals)
Cavity: T-11A
PERFORMANCE:
ORDER CODE:
