E-PD10-34 HYDRAULIC PILOTED DIRECTIONAL VALVE (External Vent - Normally Closed)

Item No.: E-PD10-34
The E-PD10-34 is a screw-in, cartridge style, pilot operated, spool-type, normally closed, hydraulic directional valve. HydraForce PD10-34 equivalent.
Description Review
Description

E-PD10-34 HYDRAULIC PILOTED DIRECTIONAL VALVE (External Vent - Normally Closed)

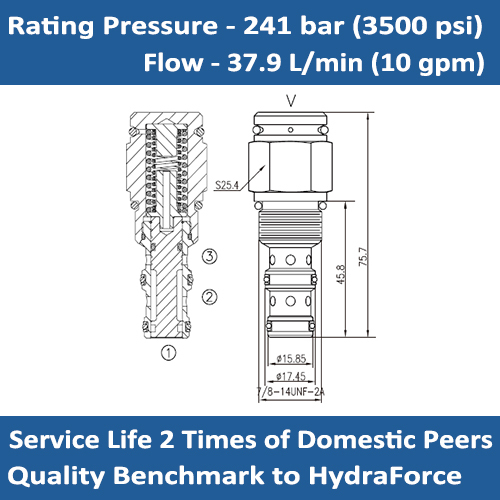

SYMBOL



DESCRIPTION:

The E-PD10-34 is a screw-in, cartridge style, pilot operated, spool-type, normally closed, hydraulic directional valve.



OPERATION

In neutral position the valve blocks flow from port 2 to 3. The spring chamber is vented to atmosphere "v" which is internally o-ring sealed from the cartridge flow paths. On remote pilot signal at port 1, the valve's spool shifts to allow flow from port 2 to 3 bidirectionally. Because of the vented spring chamber, the cartridge may be fully pressurized at any port without affecting required pilot pressure.



SPECIFICATIONS:

Max.Setting: 241 bar (3500 psi)

Flow: see Performance Chart

Max.Internal Leakage: 82 ml/min (5 in³/min) at 240 bar
Pilot Pressure Required: To Full Spool Shift, 4.7 bar for 4.1 bar spring; 8.6 bar for 7.6 bar spring

Temperature: - 30°C to +100 °C (with Standard Buna N seals)

Filtration: 25μm or better

Cavity: 10-3

Installation Torque: 32 – 35 Nm



PERFORMANCE:





ORDER CODE:



AAK Hydraulic Valve is a top manufacturer for Hydraulic Cartridge Pilot-Operated Directional Valves in Ningbo China since 2009.

We guarantee quality for 3 years for non-standard customized valves: No leakage, No Noise, No Vibration.

Contact us to customize your valves and promote your business with our premium quality!
