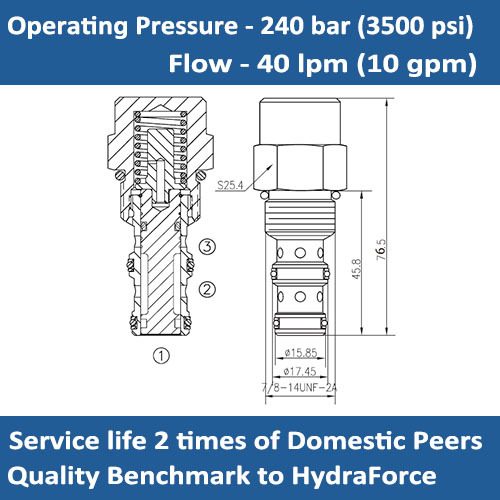

E-PD10-32 HYDRAULIC PILOTED DIRECTIONAL VALVE (Internal Vent - Normally Closed)
SYMBOL
DESCRIPTION:
The E-PD10-32 is a screw-in, cartridge style, pilot operated, spool-type, normally closed, hydraulic directional valve.
OPERATION
In neutral position the valve blocks flow from port 2 to 3. The spring bias chamber is internally vented to port 3. On remote pilot signal at port 1, the valve's spool shifts to allow flow from port 2 to 3 unidirectionally. Pressure on port 3 will directly (1:1) affect the pilot pressure required and must be added to the bias spring value.
SPECIFICATIONS:
Max.Setting: 241 bar (3500 psi)
Flow: 38 lpm / (10 gpm)
Max.Internal Leakage: 82 ml/min (5 in³/min) at 207 bar
Temperature: - 30°C to +100 °C (with Standard Buna N seals)
Filtration: 25μm or better
Cavity: 10-size-3-way Cavities
Installation Torque: 32 – 35 Nm
FEATURES:
l Hardened spool and cage for long life.
l Industry common cavity.
PERFORMANCE:
ORDER CODE:
AAK Hydraulic Valve is a top manufacturer for Hydraulic Cartridge Pilot-Operated Directional Valves in Ningbo China since 2009.
We guarantee quality for 3 years for non-standard customized valves: No leakage, No Noise, No Vibration.
Contact us to customize your valves and promote your business with our premium quality!
