E-PD10-30 HYDRAULIC PILOTED DIRECTIONAL VALVE (Internal Vent - Normally Closed)

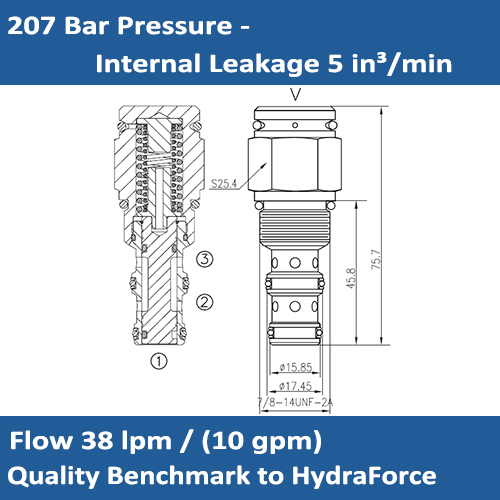

SYMBOL
DESCRIPTION:
The PD10-30 is a screw-in, cartridge style, pilot-operated, spool type, normally open, hydraulic directional valve.
OPERATION
In neutral position the valve allows flow from port 3 to 2 bi-directionally. The spring chamber is vented to atmosphere "v" which is internally o-ring sealed from the cartridge flow paths. On remote pilot signal at port 1, the valve's spool shifts to block flow from port 3 to 2. Because of the vented spring chamber, the cartridge may be fully pressurized at any port without affecting required pilot pressure.
SPECIFICATIONS:
Max.Setting: 241 bar (3500 psi)
Flow: 38 lpm / (10 gpm)
Max.Internal Leakage: 82 ml/min (5 in³/min) at 240 bar
Temperature: - 30°C to +100 °C (with Standard Buna N seals)
Filtration: 25μm or better
Cavity: 10-size-3-way Cavities
Installation Torque: 32 – 35 Nm
FEATURES:
l Hardened spool and cage for long life.
l Industry common cavity.
PERFORMANCE:
ORDER CODE:
