SYMBOL
DESCRIPTION
E-NV10-21 is a screw-in, cartridge style, variable orifice, hydraulic flow metering valve.
OPERATION
The E-NV10-21 valve increases its orifice value from fully closed to fully open with adjustment rotation in the counterclockwise direction. Effective adjustment is linear to eight turns.
Note: This is intended as a low-effort adjustment suitable for operation through linkage. It may be unsuitable in environments where vibration is present.
SPECIFICATIONS:
Working Pressure: 240 bar (3500 psi)
Flow Rating: 57 L/min (15 gpm) nominal at 11 bar (160 psi) at full open 9 turns See Performance Chart
Internal Leakage: ≦ 0.05 cc/min Max. at shut off
Temperature Range: -30°C ~ +100 °C (with Buna N seals)
Fluids: Mineral based or synthetic hydraulic fluid with lubricating properties
Fluid viscosity range: 7.4 to 420 cSt (50 to 2000 ssu)
Cavity: VC10-2
Installation Torque: 33.9 - 36.7 Nm

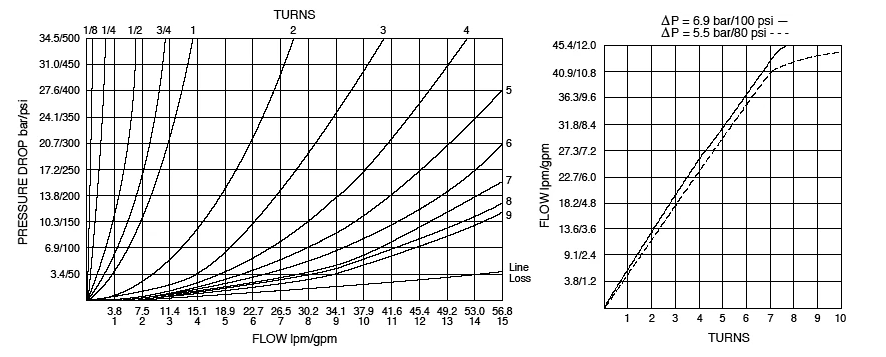

PERFORMANCE:

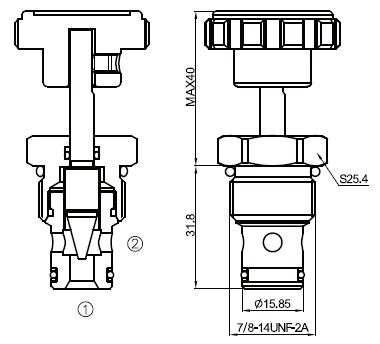

DIMENSIONS:
ORDER CODE:
