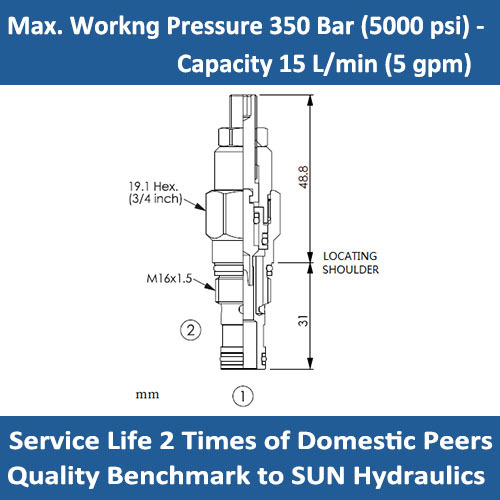

E-NFBC Fully adjustable needle valve
SYMBOL
DESCRIPTION
Needle valves are fully adjustable orifices used to regulate flow. They are infinitely adjustable from fully closed up to the maximum orifice diameter. They are not pressure compensated and may be used as flow controls or as shutoff valves.
SPECIFICATIONS:
Max.Setting: 350 bar (5000 psi)
Flow: 5 gpm (15L/min)
Adjustment - No. of CCW Turns from Fully Closed to Fully Open: 5
Cavity: T-162A
Installation Torque: 35 - 40 Nm
Filtration: 25μm or better
Temperature: - 30°C ~ 120 °C (with Standard Buna N seals)
PERFORMANCE:
ORDER CODE:
AAK Hydraulic Valve is a top manufacturer for Hydraulic Cartridge Needle Valves in Ningbo China since 2009.
We guarantee quality for 3 years for non-standard customized valves: No leakage, No Noise, No Vibration.
Contact us to customize your valves and promote your business with our premium quality!
