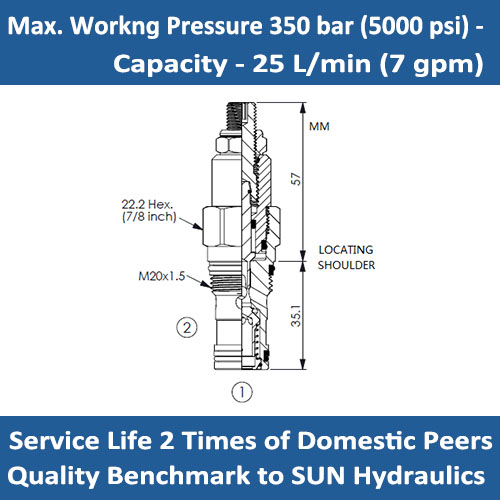

E-NCCB Fully adjustable needle valve with reverse flow check

E-NCCB Fully adjustable needle valve with reverse flow check

SYMBOL

OPERATION
Needle valves with reverse-flow check are fully adjustable orifices used to regulate flow. They are infinitely adjustable from fully closed up to the maximum orifice diameter. An integral high-capacity check valve provides unrestricted flow from port 2 to port 1. They are not pressure compensated.

SPECIFICATIONS:

Max.Setting: 350 bar (5000 psi)

Flow: 7 gpm (25 L/min)

Internal Leakage: 10 drops/min
Cavity: T-13A
Installation Torque: 40 - 50 Nm
Adjustment - No. of CCW Turns from Fully Closed to Fully Open: 5
Temperature: - 30°C to 120 °C (with Standard Buna N seals)

PERFORMANCE:

ORDER CODE:
