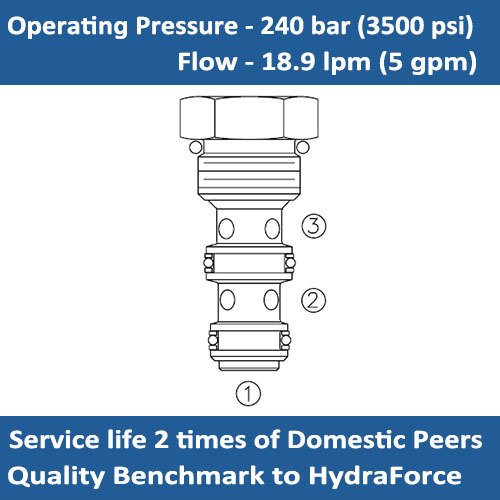

E-LS08-30 Load Shuttle Valve

Item No.: E-LS08-30
A load shuttle, screw-in, cartridge style, hydraulic check valve. HydraForce LS08-30 equivalent.
Description Review
Description

E-LS08-30 Load Shuttle Valve



SYMBOL



DESCRIPTION

A load shuttle, screw-in, cartridge style, hydraulic check valve, for use in blocking circuits where a priority of flow/direction is given to a higher pressure circuit over a lower one.



OPERATION

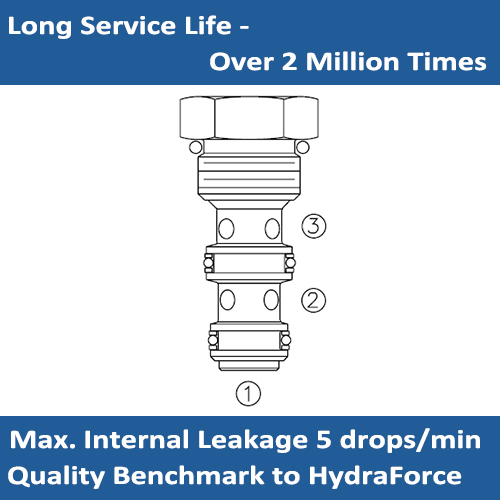

The E-LS08-30 will allow flow from the higher pressure port 1 or 3 to port 2.



FEATURES:

l  Rapid response to load direction changes.

l  Compact size.



SPECIFICATIONS:

Working Pressure: 240 bar (3500 psi)

Flow Rating: 390 bar (5700 psi);  see performance chart

Maximum Internal Leakage: 0.25 ml/min (5 drops/min) at 207 bar (3000 psi)

Temperature Range: - 40 to 120 °C (with Buna N seals)

Filtration: Best working fluid cleanliness NAS Code 9

Fluids: Mineral based or synthetic hydraulic fluid with lubricating properties

Fluid viscosity range:  7.4 to 420 cSt (50 to 2000 ssu)

Orientation restriction: None

Cavity: VC08-3;

Valve hole cutter model: CT-VC08-3-A

Seal kit: SK08-3X-MM



PERFORMANCE:



DIMENSIONS:



ORDER CODE:


AAK Hydraulic Valve is a top manufacturer for Hydraulic Load Shuttle Valves in Ningbo China since 2009.
We guarantee quality for 3 years for non-standard customized valves: No leakage, No Noise, No Vibration.

Contact us to customize your valves and promote your business with our premium quality!
