SYMBOL
DESCRIPTION

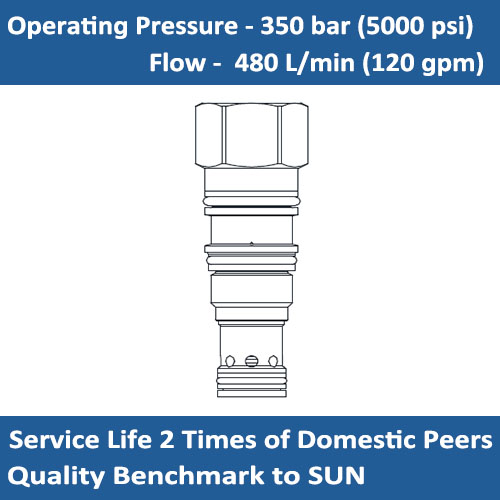

A spool-type, screw-in, cartridge style, hydraulic directional element, with multi-function potential when used with other directional, pressure, or flow control devices.
OPERATION:
The E-LRJC normally closed modulating elements without an internal orifice act as a bypass compensator to maintain a constant pressure drop across an orifice, regardless of variations in upstream or downstream pressure.
FEATURES
* A turning adjustment (models configured with an L control) is vailable to vary the pressure drop across the compensator to increase/decrease flow within +/- 25% of setting.
* All ports will accept 5000 psi (350 bar).
SPECIFICATIONS:
Max. Operating Pressure: 350 bar (5000 psi)
Capacity: 480 L/min (120 gpm)
Temperature: - 40°C ~ +120°C (with Standard Buna N seals)
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus)
Cavity: T-19A
| Flow | Model | Cavity | Installation Torque |
| 30 L/min | E-LRBC-XHN | T-163A | 35/40 Nm |
| 60 L/min | E-LRDC-XHN | T-11A | 40/50 Nm |
| 120 L/min | E-LRFC-XHN | T-2A | 60/70 Nm |
| 240 L/min | E-LRHC-XHN | T-17A | 200/215 Nm |
| 480 L/min | E-LRJC-XHN | T-19A | 465/500 Nm |

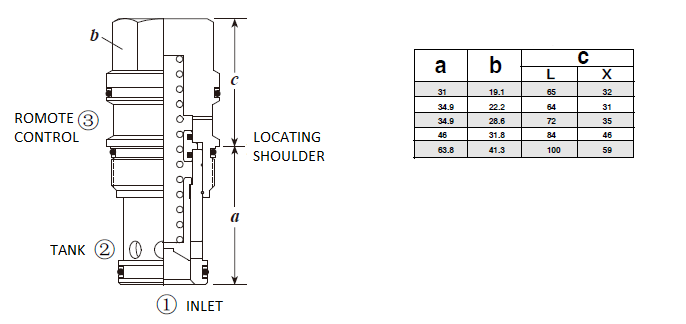

DIMENSIONS

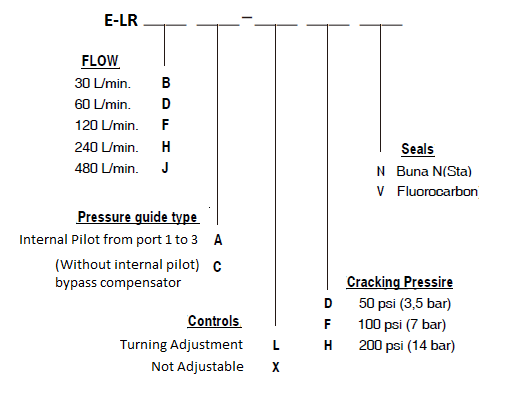

ORDER CODE
