SYMBOL
DESCRIPTION

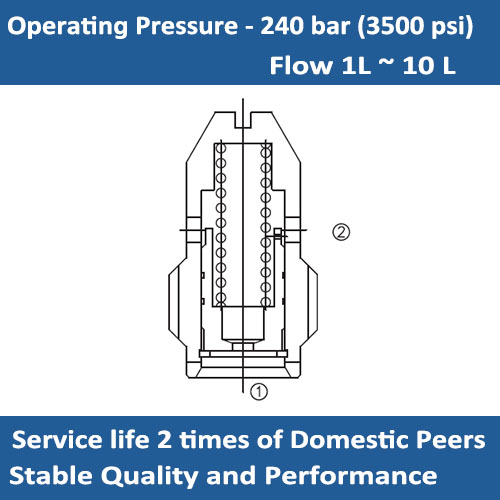

A screw-in, cartridge style, fixed orifice, pressure-compensated, hydraulic flow regulating valve (restrictive type).
OPERATION
The E-IFC-6T valve maintains a constant flow rate out of port 2 regardless of load pressure changes in the circuit downstream of port 2. Reverse flow (2 to 1) returns through the control orifice and is noncompensated.
FEATURES:
SPECIFICATIONS:
Operating Pressure: 240 bar (3500 psi)
Flow Setting: 1 L/min (min.) to 10 L/min (max.)
Flow Maintenance Accuracy: Nominal flow ±15%
Temperature Range: - 40°C ~ +120 °C (with Buna N seals)
Fluids: Mineral based or synthetics with lubricating properties at viscosities of

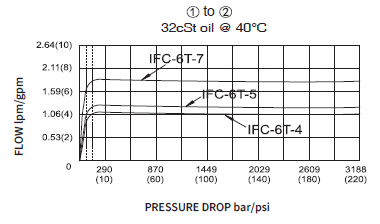

PERFORMANCE

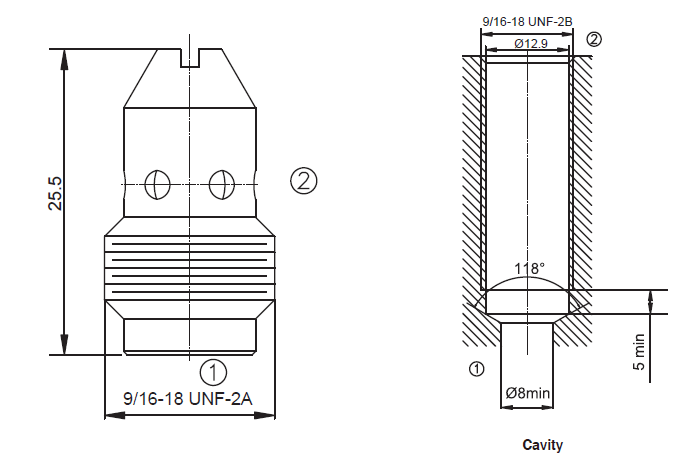

DIMENSIONS:
ORDER CODE:
