E-HCV08-20 CHECK VALVE
SYMBOL
DESCRIPTION
The E-HCV08-20 is a screw-in, cartridge style, hydraulic check valve for use as a blocking or load-holding device for high pressure applications.
OPERATION
The check valve allows flow from port 1 to 2, while normally blocking flow in the opposite direction. The cartridge valve has a fully guided poppet which is spring biased closed until sufficient pressure is applied at port 1 to open to port 2.
SPECIFICATIONS:
Operating Pressure: 350 bar (5000 psi)
Flow Rating: 30 L/min (8 gpm)
Internal Leakage: 0.10 ml/min (2 drops/min) max. at 350 bar (5000 psi)
Temperature Range: -30°C ~ +120 °C
Fluids: Mineral based or synthetic hydraulic fluid with lubricating properties
Fluid viscosity range: 7.4 to 420 cSt (50 to 2000 ssu)
Cavity: VC08-2

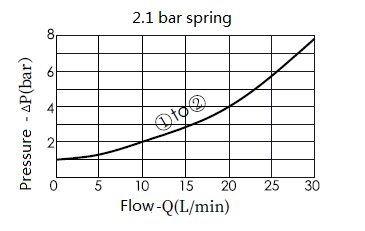

PERFORMANCE:

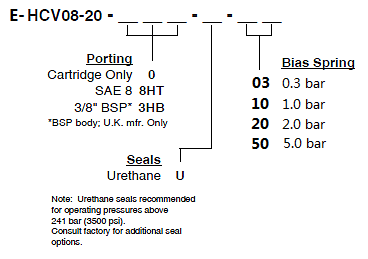

ORDER CODE:
