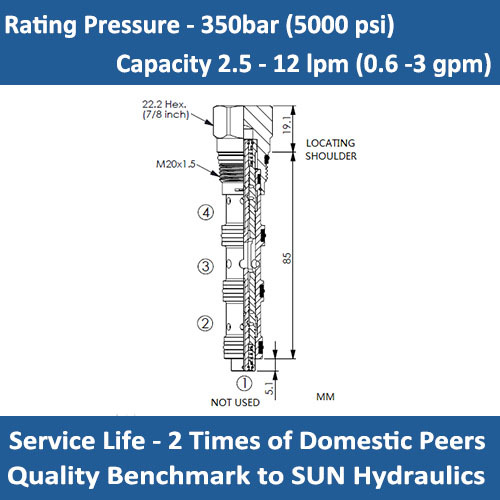

E-FSBS High accuracy synchronizing, flow divider-combiner valve
SYMBOL
DESCRIPTION
Synchronizing flow divider/combiners are sliding-spool, pressure-compensated devices used to split flow in one direction and combine flow in the opposite direction.
OPERATION
With a sychronizing feature, these valves can be used to allow two hydraulic cylinders to fully stroke and synchronize at the end of the stroke. When the first cylinder has reached the end of its stroke, a pressure-compensated, reduced flow is metered to or from the second cylinder until it also reaches the end of its stroke.
SPECIFICATIONS:
Working Pressure: 350 bar (5000 psi)
Flow Accuracy:
Divisional Accuracy at Minimum Input Flow: 50% ±3.0%
Divisional Accuracy at Max Input Flow: 50% ±2.0%
Pressure Drop at Minimum Rated Input Flow: 30 psi
Pressure Drop at Maximum Rated Input Flow: 350 psi
Temperature Range: -40°C ~ +120 °C (with Buna N seals)
Fluids: Mineral based or synthetic hydraulic fluid with lubricating properties
Fluid viscosity range: 7.4 to 420 cSt (50 to 2000 ssu)
Cavity: T-31A
PERFORMANCE:

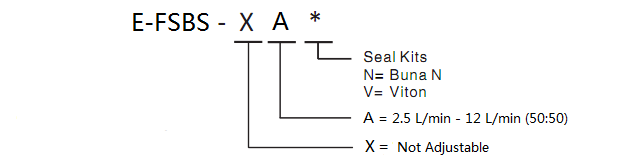

ORDER CODE:
