SYMBOL
OPERATION
The valve maintains a constant flow rate from port 3 regardless of pressure variations in the system downstream of priority port 3 or in bypass leg at port 2. The valve will pressure-compensate once a minimum pressure drop (determined by spring adjustment setting) is achieved from port 1 to port 3. Bypass port 2 may be fully pressurized.
The cartridge may be adjusted to ± 22% of nominal setting.
Flow out of priority port 3 may vary based on input flow amout, particularly with lower temperatures and increased fluid viscosities.
SPECIFICATIONS:
Max. Operating Pressure: Port 1 and 2: 350 bar (5000 psi); Port 3: 210 bar (3000 psi)
Capacity: 95 L/min (25 gpm)
Max.Input Flow: 240 L/min (60 gpm)
Temperature: - 30°C ~ + 100 °C (Standard Buna N Seals)
Fluids: Mineral based or synthetic hydraulic fluid with lubricating properties
Fluid Viscosity Range: 7.4 to 420 cSt
Cavity: T-17A
Installation torque: 200 - 215 Nm

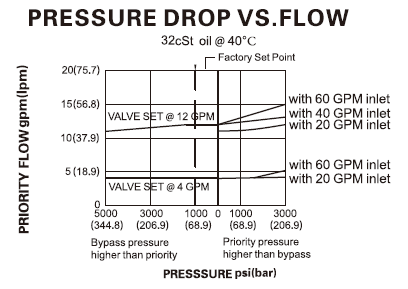

PERFORMANCE:

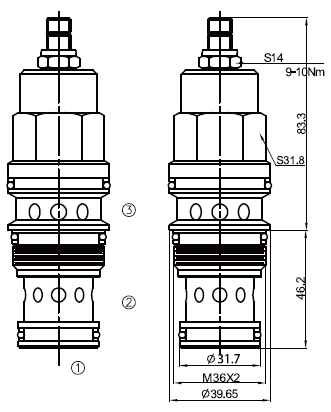

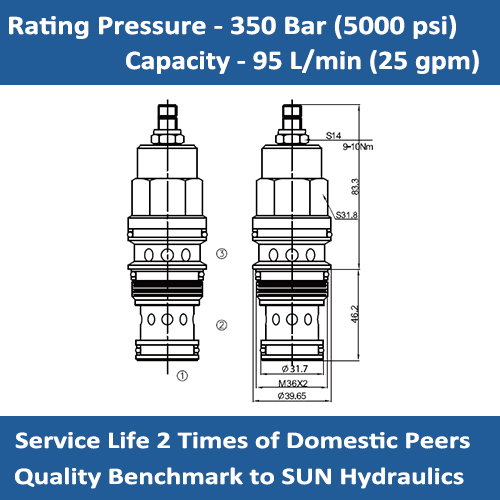

DIMENSIONS

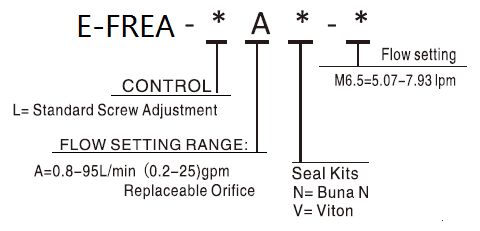

ORDER CODE:
