Pressure Compensated Flow Regulator Valve Cartridge

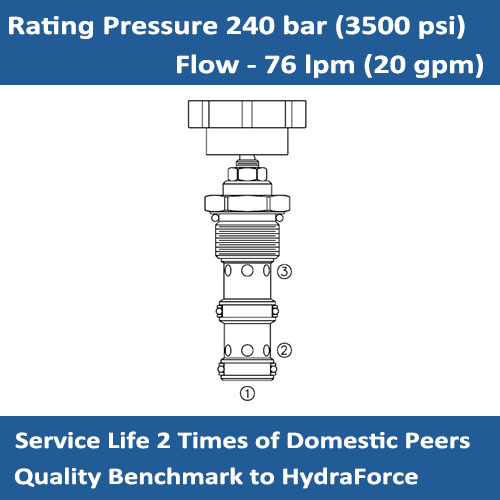

FR12-33 Adjustable Pressure Compensated Priority Flow Regulator Valve Cartridge

Item No.: FR12-33
FR12-33X is a screw-in cartridge, adjustable orifice, pressure compensation, manual operation bypass flow control valve. It can be used as a priority type flow regulator or a restrictive type, 2-way, flow regulator when the bypass line (port 2) is blocked
Description
Description

FR12-33 Adjustable Pressure Compensated Priority Flow Regulator Valve Cartridge



SYMBOL



DESCRIPTION

FR12-33X is a screw-in cartridge, adjustable orifice, pressure compensation, manual operation bypass flow control valve. It can be used as a priority type flow regulator or a restrictive type, 2-way, flow regulator when the bypass line (port 2) is blocked.



OPERATION

The flow from port 3 remains unchanged and is not affected by the load pressure change of the downstream circuit of port 3 or bypass port 2. The reverse liquid flow (from port 3 to port 1) does not pass through the control orifice. Turn the handle counterclockwise to gradually increase the regulated flow from closed to fully open

Note: when used for bypass flow control and the priority oil port is closed by other locks, unless there is a small amount of leakage at the priority oil port, the bypass pressure drop will increase. Please contact the factory.



FEATURES:

l  Bypass port 2 may be fully pressurized.

l  Hardened steel parts for long life.

l  Quiet, modulated response.

l  Industry-common cavity.



SPECIFICATIONS:

Pressure Ratings: 240 bar (3500 psi)

Flow Ratings: 0-68 lpm (0-18 gpm) Note: Priority + bypass, 3-ported

            0-45 lpm (0-12 gpm) Note: Bypass closed, 3-ported

Inlet Flow Rating (Priority + bypass): 76 lpm (20 gpm) Note: Nominal

114 lpm (30 gpm) Note: Maximum

Internal Leakage: 100cc/minute (6 cu.in./minute) at 207 bar (3000 psi)

Required adjustment torque: 1.7 Nm (15 in.-pounds) at 207 bar (3000 psi)

Temperature: - 40 to 120 °C

Filtration: Optimal working fluid cleanliness NAS Class 9

Fluids: Mineral based or synthetic hydraulic fluid with lubricating properties

Fluid Viscosity Range: 7.4 to 420 cSt (50 – 2000 ssu)

Cavity: VC12-3

Seal Kit: SK12-3X-MM



PERFORMANCE:



DIMENSIONS:



ORDER CODE:
