Pressure Compensated Flow Regulator Valve Cartridge

FR10-39 Adjustable Pressure Compensated Flow Regulator Valve Cartridge

Item No.: FR10-39
FR10-39X is an adjustable, pressure compensated, flow control valve. It CAN be used as a priority type flow regulator, or a restrictive type, 2-way, flow regulator when the bypass line (port 2) is blocked.
Description
Description

FR10-39 Adjustable Pressure Compensated Flow Regulator Valve Cartridge

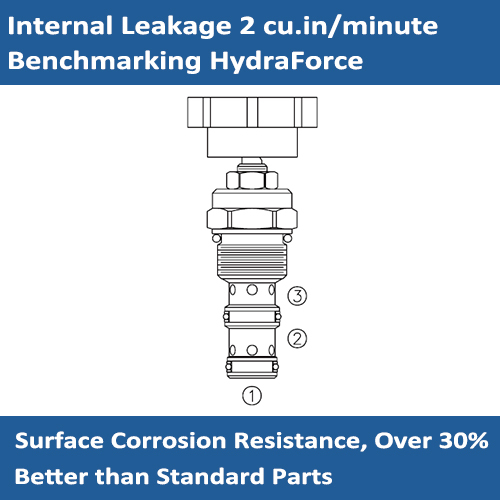

SYMBOL



DESCRIPTION

FR10-39X is an adjustable, pressure compensated, flow control valve. It CAN be used as a priority type flow regulator, or a restrictive type, 2-way, flow regulator when the bypass line (port 2) is blocked.



OPERATION

The flow from port 3 remains unchanged and is not affected by the load pressure change of the downstream circuit of port 3 or bypass port 2. The reverse liquid flow (from port 3 to port 1) does not pass through the control orifice. Turn the handle counterclockwise to gradually increase the regulated flow from closed to fully open

Note: when used for bypass flow control and the priority oil port is closed by other locks, unless there is a small amount of leakage at the priority oil port, the bypass pressure drop will increase. Please contact the factory.



FEATURES:

l  Bypass port 2 may be fully pressurized.

l  Fine low-torque adjustment.

l  Hardened steel parts for long life.

l  Quiet, modulated response.

l  Industry-common cavity.



SPECIFICATIONS:

Pressure Ratings: 240 bar (3500 psi)

Flow Ratings: 0-38 lpm (0-10 gpm) Note: Priority + bypass, 3-ported

            0-34 lpm (0-9 gpm) Note: Bypass closed, 3-ported

Note: Low flow level, see FR10-33 valve

Inlet Flow Rating (Priority + bypass): 0-38 lpm (0-10 gpm) Note: Nominal

0-57 lpm (0-15 gpm) Note: Maximum

Internal Leakage: 33cc/minute (2 cu.in./minute) at 207 bar (3000 psi)

Required adjustment torque: 1.7 Nm (15 in.-pounds) at 207 bar (3000 psi)

Temperature: - 40 to 120 °C

Filtration: Optimal working fluid cleanliness NAS Class 9

Fluids: Mineral based or synthetic hydraulic fluid with lubricating properties

Fluid Viscosity Range: 7.4 to 420 cSt (50 – 2000 ssu)

Cavity: VC10-3

Seal Kit: SK10-3X-MM



PERFORMANCE:



DIMENSIONS:



ORDER CODE:



AAK Hydraulic Valve is a top manufacturer for Hydraulic Pressure Compensated Flow Control Valves
 in Ningbo China since 2009.

We guarantee quality for 3 years for non-standard customized valves: No leakage, No Noise, No Vibration.

Contact us to customize your valves and promote your business with our premium quality!

Send your message to us
ver_code
