E-FR10-30F Regulator Pressure-compensated Valves
SYMBOL
DESCRIPTION

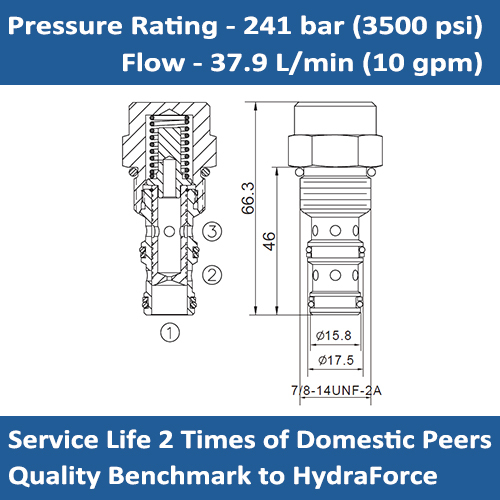

The E-FR10-30F is a screw-in, cartridge style, pressure compensated, non-adjustable hydraulic flow regulator valve. It CAN be used as a priority type flow regulator, delivering the pump flow to priority port 3 first, then bypassing excess to port 2; or a restrictive type, 2-way flow regulator when the bypass port 2 is blocked.
OPERATION
The valve maintains a constant flow rate from port 3 regardless of pressure variations in the system downstream of priority port 3 or in bypass leg at port 2. All ports may be fully pressurized.
FEATURES:
l Hardened steel parts for long life.
l Quiet, modulated response.
l Industry-common cavity.
SPECIFICATIONS:
Pressure Ratings: 241 bar (3500 psi)
Flow Ratings:
Priority Flow Rating: 0.4 to 22.7 lpm (0.1 to 6.0 gpm)
Inlet Flow Rating: 37.8 lpm (10.0 gpm) Maximum
Cartridge Installation torque: 33.9 Nm Max
Temperature: - 30 to 100 °C
Fluids: Mineral based or synthetic hydraulic fluid with lubricating properties
Fluid Viscosity Range: 7.4 to 420 cSt
Cavity: VC10-3
PERFORMANCE:
ORDER CODE:
