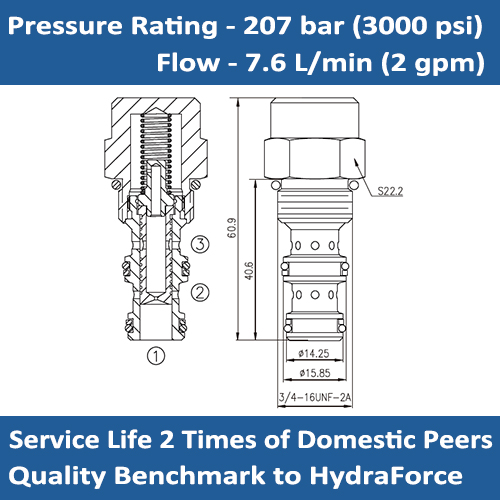

E-FR08-30F Regulator Pressure-compensated Valves
SYMBOL
DESCRIPTION
The E-FR08-30F is a screw-in, cartridge style, pressure compensated, non-adjustable hydraulic flow
regulator valve. It CAN be used as a priority type flow regulator, delivering the pump flow to priority port 3 first, then bypassing excess to port 2; or a restrictive type, 2-way flow regulator when the bypass port 2 is blocked
OPERATION
The valve maintains a constant flow rate from port 3 regardless of pressure variations in the system
downstream of priority port 3 or in bypass leg at port 2. All ports may be fully pressurized
FEATURES:
l Hardened steel parts for long life.
l Quiet, modulated response.
l Compact Industry-common cavity.
SPECIFICATIONS:
Pressure Ratings: 207 bar (3000 psi)
Flow Ratings:
Priority flow rating 0.4 to 7.6 lpm (0.1 to 2.0 gpm)
Inlet flow rating 11.4 lpm (3.0 gpm) - Note: Nominal 18.9 lpm (5.0 gpm) - Note: Maximum
Cartridge Installation torque: 24.5 – 27.1 Nm
Temperature: - 30 to 100 °C
Fluids: Mineral based or synthetic hydraulic fluid with lubricating properties
Fluid Viscosity Range: 7.4 to 420 cSt
Cavity: VC08-3
PERFORMANCE:
ORDER CODE:
