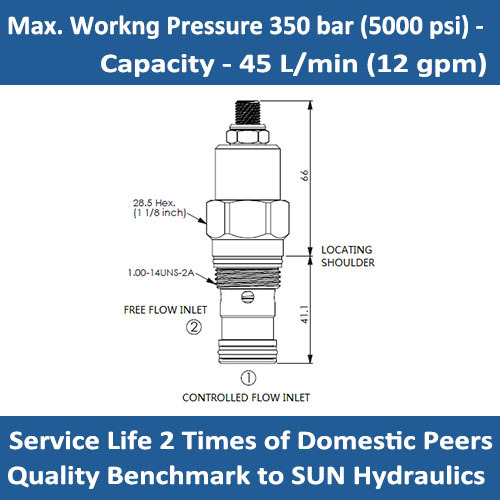

E-FDCB Fully adjustable pressure compensated flow control valve with reverse flow check

E-FDCB Fully adjustable pressure compensated flow control valve with reverse flow check

SYMBOL

OPERATION
Fully adjustable, pressure-compensated flow controls with reverse-flow check provide precise flow regulation for meter-in or meter-out applications where there may be wide pressure fluctuations. They are infinitely adjustable from nearly closed up to the maximum flow. An integral high-capacity check valve provides unrestricted flow from port 2 to port 1.

SPECIFICATIONS:

Max.Setting: 350 bar (5000 psi)

Flow: 12 gpm (45 L/min)

Adjustment - No. of CCW Turns from Fully Closed to Fully Open: 5
Cavity: T-5A
Installation Torque: 50 - 60 Nm
Filtration: 25μm or better
Temperature: - 30°C to 120 °C (with Standard Buna N seals)

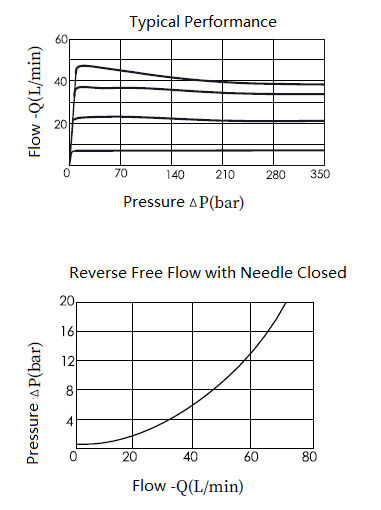

PERFORMANCE:

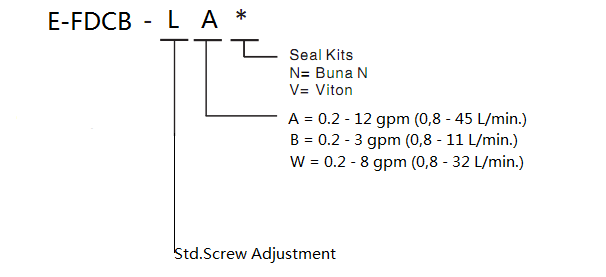

ORDER CODE:
