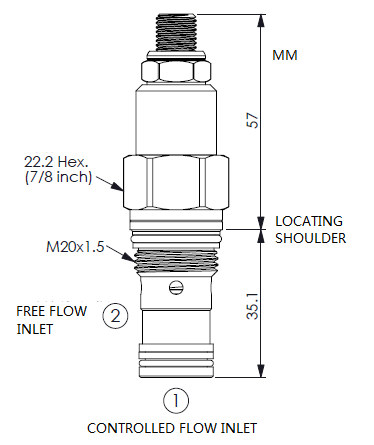

E-FDBA Fully adjustable pressure compensated flow control valve with reverse flow check
SYMBOL
OPERATION
Fully adjustable, pressure-compensated flow controls with reverse-flow check provide precise flow regulation for meter-in or meter-out applications where there may be wide pressure fluctuations. They are infinitely adjustable from nearly closed up to the maximum flow. An integral high-capacity check valve provides unrestricted flow from port 2 to port 1.
SPECIFICATIONS:
Max.Setting: 350 bar (5000 psi)
Flow: 6 gpm (23 L/min)
Adjustment - No. of CCW Turns from Fully Closed to Fully Open: 5

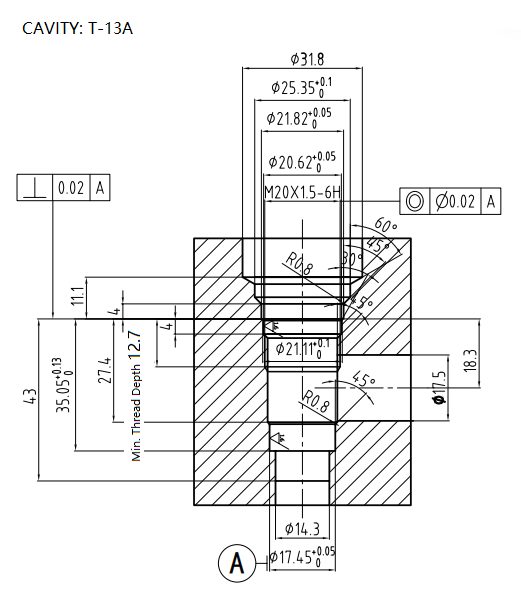

Cavity: T-13A
Installation Torque: 40 - 50 Nm
Filtration: 25μm or better

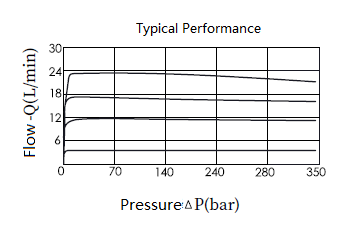

PERFORMANCE:

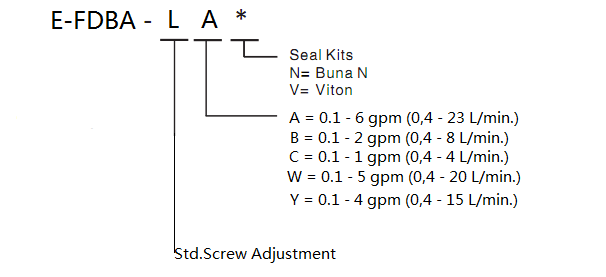

ORDER CODE:
