SYMBOL
DESCRIPTION

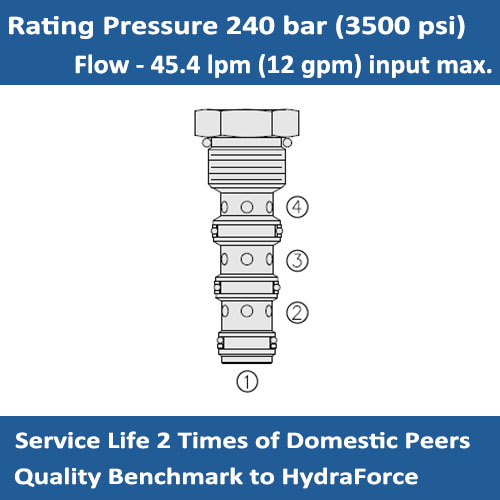

The E-FD10-40 is a screw-in, cartridge style, spool-type flow divider/combiner. Optional flow dividing/combining ratios are maintained regardless of system operating pressure conditions.
OPERATION
In the dividing mode, the E-FD10-40 will divert input flow from port 3 to ports 2 and 4, based on the ratio specified, regardless of operating pressure. The cartridge will combine input flows from ports 2 and 4.
Should circuit operation result in a blockage of either 2 or 4, the opposite port may also close under certain conditions.
FEATURES
* Hardened parts for long life.
* Quiet, modulated response.
* Industry-common cavity.
SPECIFICATIONS:
Working Pressure: 240 bar (3500 psi)
Flow: 45.4 lpm (12 gpm) input max.
Flow Options:
Input Flow: 7.6 lpm (2 gpm); Ratio: 50:50; Model Code: 11
Input Flow: 15.1 lpm (4 gpm); Ratio: 50:50; Model Code: 22
Input Flow: 22.7 lpm (6 gpm); Ratio: 50:50; Model Code: 33
Input Flow: 30.3 lpm (8 gpm); Ratio: 50:50; Model Code: 44
Input Flow: 37.9 lpm (10 gpm); Ratio: 50:50; Model Code: 55
Input Flow: 45.4 lpm (12 gpm); Ratio: 50:50; Model Code: 66
Standard Compensator Bias Spring: 2.07 bar (30 psi)
Flow Accuracy: 10% from 30 - 100% of rated flow
Temperature Range: -40°C ~ +120 °C (with Buna N seals)
Fluids: Mineral based or synthetic hydraulic fluid with lubricating properties
Fluid viscosity range: 7.4 to 420 cSt (50 to 2000 ssu)
Cavity: VC10-4
PERFORMANCE:

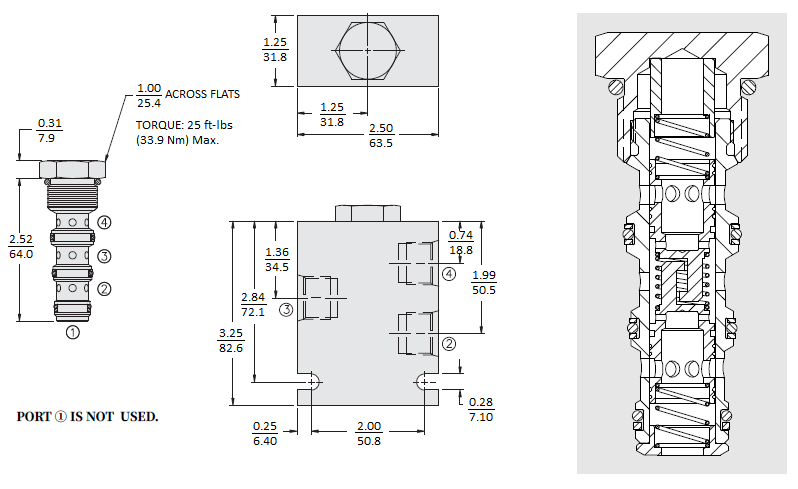

DIMENSIONS

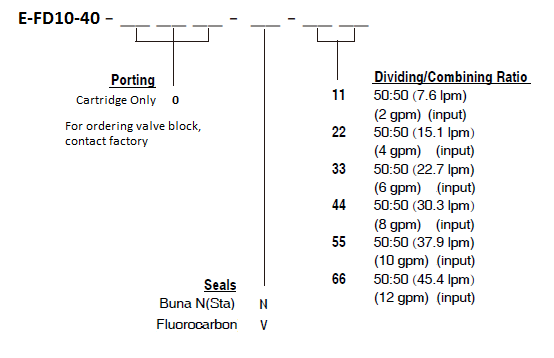

ORDER CODE:
