FD-10 Flow Diverter Valves

Item No.: FD-10
Diverter valve, also known as speed synchronization valve, is the general name of diverter valve, collecting valve, one-way diverter valve, one-way collecting valve and proportional diverter valve in hydraulic valve.

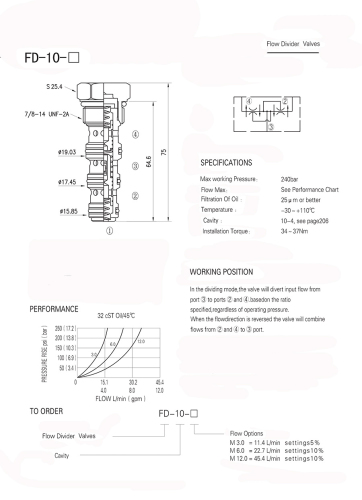

FD-10 Flow Diverter Valves
Max working Pressure: 240bar
Flow Max:                     See Performance Chart
Filtration of Oil:             25 μm or better
Temperature:                -30 ~ +100℃
Cavity:                          10-4
Installation Torque:       34~37Nm

In the dividing mode, the valve will divert input flow from port ③ to ports ② and ④, based on the ratio specified, regardless of operating pressure. When the flow direction is reversed the valve will combine flows from ② and ④ to ③ port.

AAK Hydraulic Valve is a top manufacturer for Hydraulic Diverter Valves in Ningbo China since 2006.
We guarantee quality for 3 years: No leakage, No Noise, No Vibration.
Contact us to customize your valves and promote your business with our premium quality!
