SYMBOL
DESCRIPTION

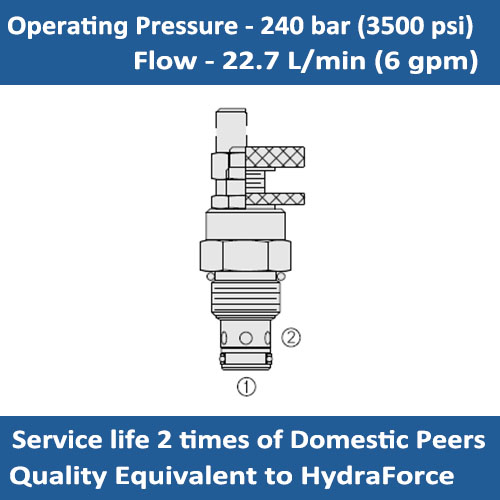

A screw-in, cartridge style, variable orifice, hydraulic flow control valve with reverse flow check.
OPERATION
The E-FC08-20 regulator is rotated counterclockwise, the throttle hole can be changed from fully closed to fully open. Port 2 to port 1 throttle, port 1 to port 2 open.
FEATURES:
* Adjustment cannot be backed out of the valve.
SPECIFICATIONS:
Operating Pressure: 240 bar (3500 psi)
Flow Rating: 22.7 lpm (6 gpm) nominal at 7 bar (100 psi) at full open 3.0 turns
Maximum Internal Leakage: 0.50 cc/min (10 drops/min) at Shut off.
Adjustment Torque Required: 0.34 Nm (3 inch-pounds) at 7 bar (100 psi).
Pressure: 207 bar (3000 psi), the required torque is 4.50 Nm (40 inch-pounds).
Temperature Range: - 40°C ~ +120 °C (with Buna N seals)
Fluids: Mineral based or synthetics with lubricating properties at viscosities of
Cavity: VC08-2
PERFORMANCE

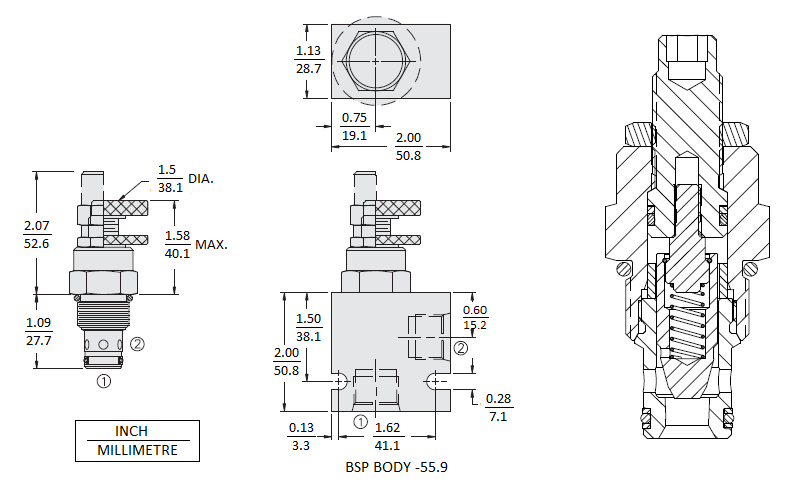

DIMENSIONS:

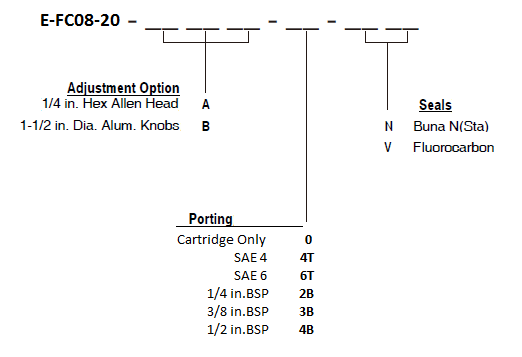

ORDER CODE:
