E-EP20-S35 DIRECTIONAL ELEMENT, PILOTED
SYMBOL
DESCRIPTION
The E-EP20-S35 is a screw-in, cartridge style, pilot to close hydraulic directional element.
OPERATION
The E-EP20-S35 is a spring-biased blocking valve which will shift to allow full flow from port 1 to 2 only when the pressure at port 1 exceeds the cumulative pressure of port 3, plus the bias spring pressure value.
FEATURES:
l Multiple function/application potential.
l Low pressure loss.
l Industry-common cavity.
SPECIFICATIONS:
Working Pressure: 345 bar (5000 psi)
Flow Rating: 380 L/min
Maximum Internal Leakage: 164 ml/min (10 in³/min) at 240 bar (3500 psi)
Temperature Range: - 30 °C to +120 °C (- 22 °C F to + 250 °C F)
Fluids: Mineral based fluids with viscosities of 7.4 to 420 cSt (50 to 2000 ssu)
Cavity: VC20-S3;
PERFORMANCE:

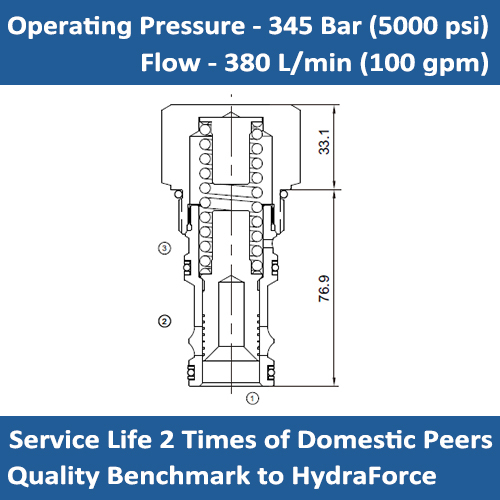

DIMENSIONS:
ORDER CODE:
