E-EP08-35 DIRECTIONAL ELEMENT, PILOTED
SYMBOL
DESCRIPTION

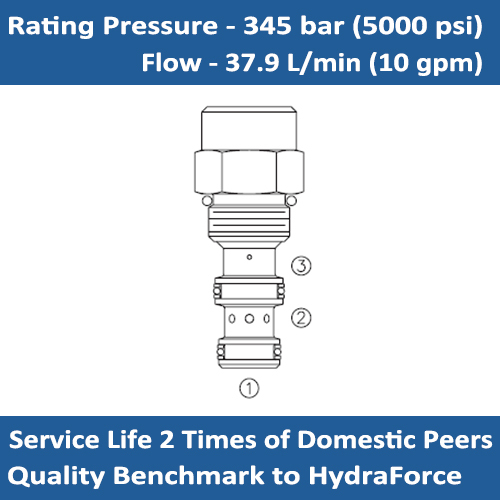

The E-EP08-35 is a screw-in, cartridge style, spool type, hydraulic directional element.
OPERATION
The E-EP08-35 is a spring-biased blocking valve, which will open port 1 to 2 when pressure at port 1 exceeds the cumulative pressure at port 3 and the bias spring pressure value. With no pressure at port 3 flow will be allowed from port 1 to 2 once the bias spring force is overcome with pressure at port 1.
FEATURES:
l Multiple function/application potential.
l Low pressure drop.
l Compact size.
l Industry-common cavity.
SPECIFICATIONS:
Max. Working Pressure: 345 bar (5000 psi) (Steel & Ductile Iron Body) ; 240 bar (3500 psi) (Aluminum Body)
Flow Rating: see performance chart
Maximum Internal Leakage: Maximum 115 ml/min (7 in³/min) at 207 bar (3000 psi)
Temperature Range: - 40 ~ +120 °C (with Buna N seals)
Fluids: Mineral based or synthetic hydraulic fluid with lubricating properties
Fluid viscosity range: 7.4 to 420 cSt (50 to 2000 ssu)
Cavity: 08-3
PERFORMANCE:
DIMENSIONS:
ORDER CODE:
