SYMBOL
DESCRIPTION:
A solenoid-operated, 2-way, normally open, internally piloted, poppet-type, bi-directional blocking, screw-in hydraulic cartridge valve designed for low leakage in load-holding applications.
OPERATION:
When de-energized, the E-EP-16W-32 allows flow in both directions.
When energized, the valve's poppet closes on its seat, blocking flow from 1 to 2 or 1 to 2.
Operation of Manual Override Option: To override, push and hold override button. To return to normal valve function, release button.
FEATURES:
* Continous-duty rated coil.
* Hardened seat for long life and low leakage.
* Optional coil voltages and terminations.
* Efficient wet-armature construction.
* Cartridges are voltage interchangable.
* Unitized, molded coil design.
* Manual override option.
* Optional waterproof E-Coils rated up to IP69K.
* Industry common cavity.
* Compact size.
SPECIFICATIONS:
Pressure Rating: 350 bar (5000 psi)
Flow: 150L/min (37.5 gpm)
Internal Leakage: 0.15 cc/min (3 drops/min.) max. at 350 bar (5000 psi)
Temperature: - 40°C ~ +120 °C (with Standard Buna N seals);
Minimum Pull-in Voltage: 85% of nominal at 207 bar (3000 psi);
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus);
Cavity: VC16-2

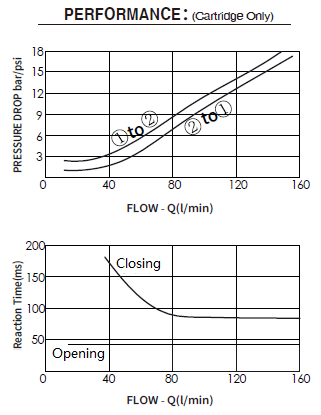

PERFORMANCE:

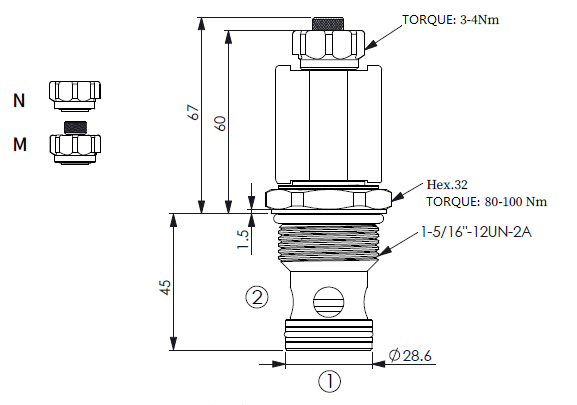

DIMENSIONS:

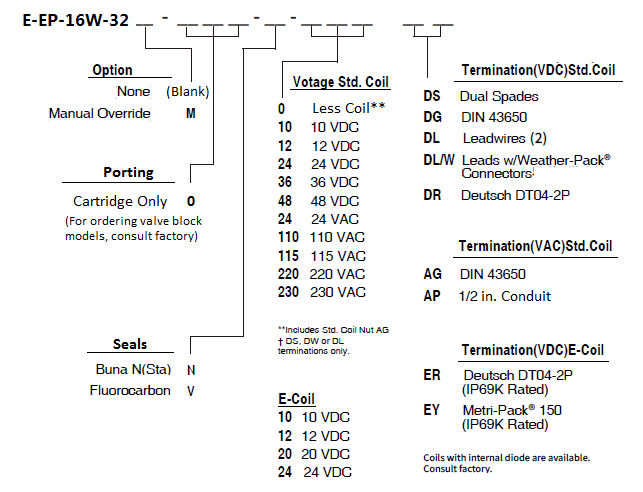

ORDER CODE:
