SYMBOL
DESCRIPTION:
Direct-acting poppet, 2-position, 3-way directional valve, quick response.
OPERATION:
In case of power failure, E-EP-10W-53 shall close ports 3, 1 and 2 in both directions.
After energization, the valve port 1 is closed, and the ports 2 and 3 are bidirectional .
FEATURES:
* Continous-duty rated coil.
* Hardened precision spool and cage for long life.
* Optional coil voltages and terminations.
* Efficient wet-armature construction.
* Cartridges are voltage interchangable.
* Manual override option.
* Optional waterproof E-Coils rated up to IP69K.
* Unitized, molded coil design.
* Industry common cavity.
SPECIFICATIONS:
Pressure Rating: 350 bar (5000 psi)
Flow: 25 L/min (6.25 gpm)
Internal Leakage: 0.15 cc/min (3 drops/min.) max. at 350 bar (5000 psi)
Temperature: - 40°C ~ +120 °C (with Standard Buna N seals);
Coil Duty Rating: Continuous from 85% to 115% of nominal voltage;
Minimum Pull-in Voltage: 85% of nominal at 207 bar (3000 psi);
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus);
Cavity: VC10-3

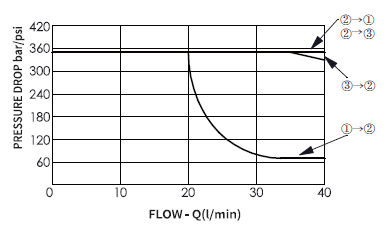

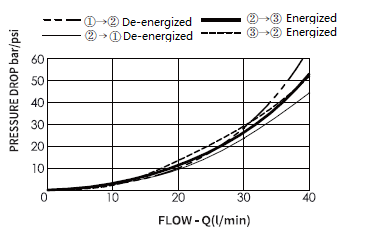

PERFORMANCE:

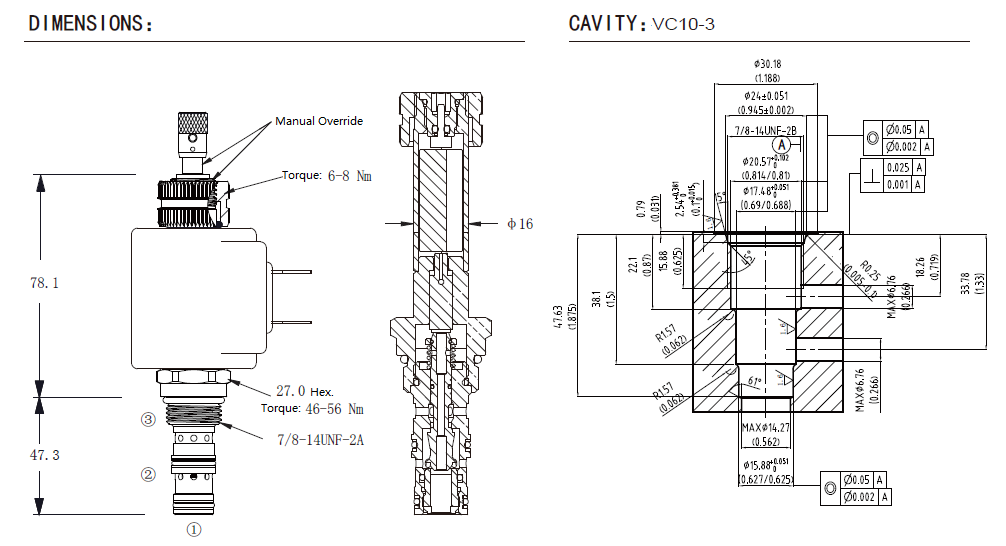

DIMENSIONS:

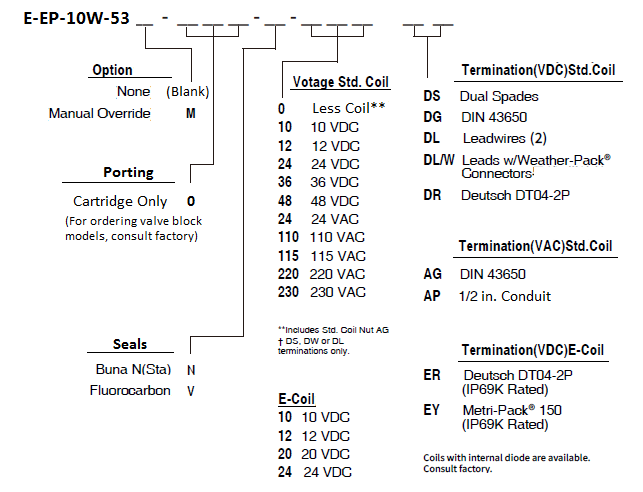

ORDER CODE:
