E-EHPR08-33 Proportional pressure reducing/relieving cartridge valve
SYMBOL
DESCRIPTION
The E-EHPR08-33X is a direct-acting, spool-type, proportional, pressure reducing/ relieving valve. The regulated pressure is proportional to the input electrical current. EHPR08-33X free flow from port 1 to port 3 when no current is applied to the coil. With coil energized, port 2 is connected to port 1. Increasing current to the coil will increase the control (reduced) pressure proportionally. If pressure at port 1 exceeds the setting induced by the coil, pressure from port 1 port 1 is relieved to port 3.
OPERATION
The E-EHPR08-33 free flow from 1 to 3 when no current is applied to the coil. When the coil is energized, 2 is connected to 1. Increasing current applied to the coil will increase the control (reduced) pressure proportionally. If pressure at 1 exceeds the setting induced by the coil, pressure from 1 is relieved to 3.
Note: back pressure on port 3 becomes additive to the pressure setting at a 1:1 ratio.
FEATURES
* 12 and 24 volt coils standard.
* Optional waterproof E-Coils rated up to IP69K.
* Industry common cavity.
* Optional manual override.
SPECIFICATIONS:
Operating Pressure: 207 bar (3000 psi)
Flow rating: 4.0 lpm (1.05 gpm) Note: △p (cartridge only) port 1 to port 3 (coil de-energized), DP = 6 bar (87 psi)
Max.Control Current: 12 VDC coil - 1.20 A; 24 VDC coil - 0.60 A
Temperature: - 40℃ ~ + 120℃ (Standard Buna N seals)
Fluids: Mineral based or synthetic hydraulic fluid with lubricating properties
Fluid viscosity range: 7.4 to 420 cSt (50 to 2000 ssu)
Cavity: 08-3
PERFORMANCE:

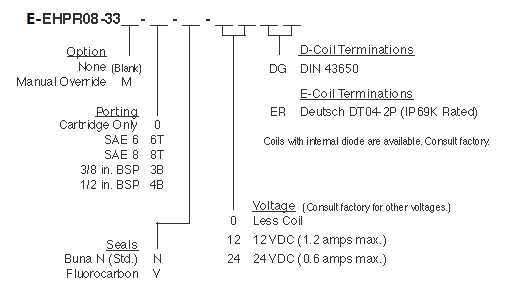

ORDER CODE:
AAK Hydraulic Valve is a top manufacturer for pressure reducing/relieving proportional cartridge valves in Ningbo China since 2009.
We guarantee quality for 3 years for non-standard customized valves: No leakage, No Noise, No Vibration.
Contact us to customize your valves and promote your business with our premium quality!
