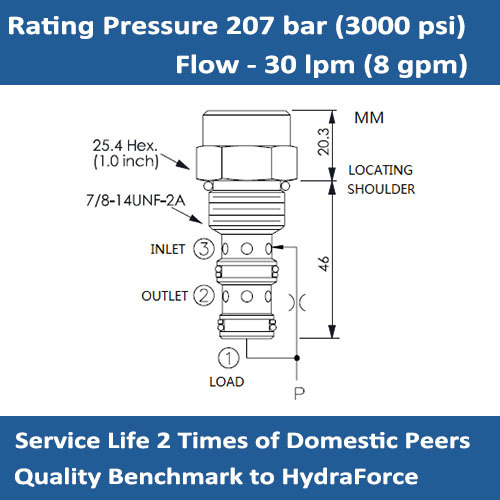

E-EC10-30 Pressure Compensated flow regulating valve
SYMBOL
DESCRIPTION
E-EC10-30 is a pressure - compensating element,intended for use with remote fixed or variable orifice to yield a two - port type, pressure compensated, flow - regulating hydraulic valve.
OPERATION
This valve maintains a constant flow rate from port 2 regardless of load pressure changes in the circuit downstream of port 2. This valve maintains a constant differential pressure from circuit point P to port 3 (see symbol), thereby regulating the hydraulic flow rate between the two points in the circuit.
SPECIFICATIONS:
Pressure Ratings: 207 bar (3000 psi)
Flow Rating: 30 lpm (8 gpm) Note: with 80 psi spring
Temperature: - 40°C ~ + 120 °C
Fluids: Mineral based or synthetic hydraulic fluid with lubricating properties
Fluid Viscosity Range: 7.4 to 420 cSt (50 – 2000 ssu)
Cavity: VC10-3
PERFORMANCE:

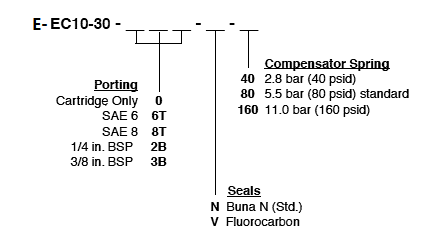

ORDER CODE:
