SYMBOL
DESCRIPTION
E-EC08-32 is a screw-in, cartridge style, load sense, flow on demand, pressure compensator valve.
OPERATION
With inlet flow at port 2, the E-EC08-32 will deliver required flow at port 3 regardless of load pressure sensed at port 1.
FEATURES
* Range of flow ratings available.
* Hardened parts for long life.
* Several compensation springs available.
* Quiet, modulated response.
* Compact, industry-common cavity.
SPECIFICATIONS:
Operating Pressure (Inlet): 241 bar (3500 psi);
Flow Rate:
5.7 lpm (1.5 gpm) Note: With 2.7 bar (40 psi)compensating spring
11.4 lpm (3.0 gpm) Note: With 5.5 bar (80 psi)compensating spring
19 lpm (5.0 gpm) Note: With 10.3 bar (150 psi)compensating spring
30.3 lpm (8.0 gpm) Note: With 17.2 bar (250 psi)compensating spring
Max.Internal Leakage: 20 ml/min (1.2 in³/min) Note: At port 1 with pressure at port 2 and port 3 blocked 241 bar (3500 psi)
Temperature: - 30°C ~ + 100 °C (Standard Buna N Seals)
Fluids: Mineral based or synthetic hydraulic fluid with lubricating properties
Fluid Viscosity Range: 7.4 to 420 cSt
Cavity: VC08-3
Installation torque: 24.5 - 27.1 Nm

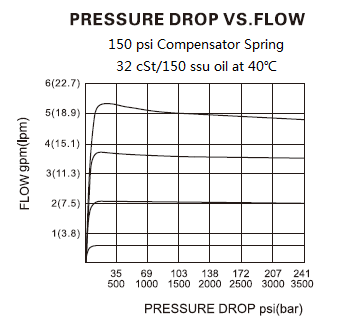

PERFORMANCE:

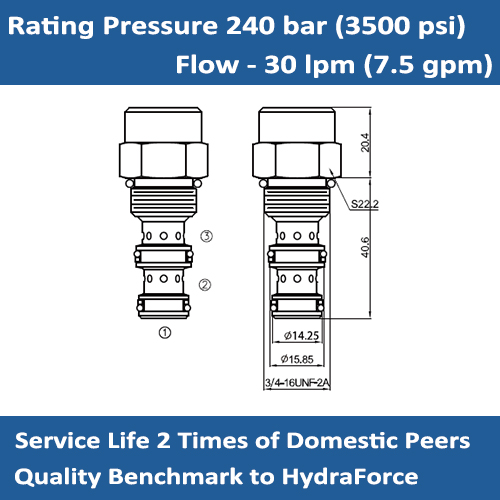

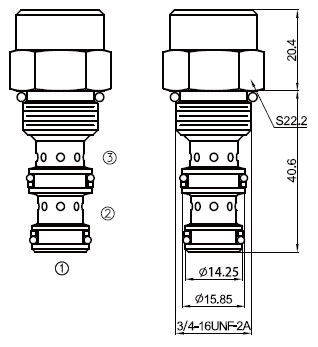

DIMENSIONS
ORDER CODE:
