SYMBOL
DESCRIPTION:

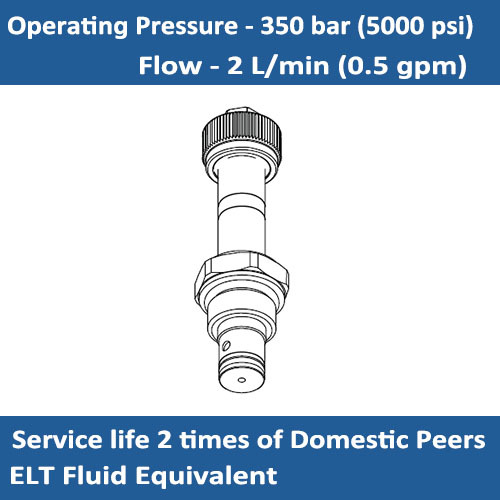

Electric cartridge valve on/off designed for the control of pilot lines and logic elements.
OPERATION:
When de-energized, the E-E08N-23KPT valve allows flow in both directions, from 1 to 2 and from 2 to 1.
When energized, the valve in closed position blocks the flow from 1 to 2.
FEATURES:
* Continous-duty rated coil.
* Hardened seat for long life and low leakage.
* Optional coil voltages and terminations.
* Efficient wet-armature construction.
* Cartridges are voltage interchangable.
* Unitized, molded coil design.
* Manual override option.
* Optional waterproof E-Coils rated up to IP69K.
* Industry common cavity.
SPECIFICATIONS:
Operating Pressure: 350 bar (5000 psi)
Flow: 2 L/min (0,5 gpm)
Leakage: 0.25 cc/min (5 drops/min.) max. at 350 bar (5000 psi)
Temperature: - 40°C ~ +100 °C (with Standard Buna N seals);
Coil Duty Rating: Continuous from 85% to 115% of the nominal voltage
Minimum Pull-in Voltage: 85% of nominal at 207 bar (3000 psi);
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus);
Cavity: VC08-2

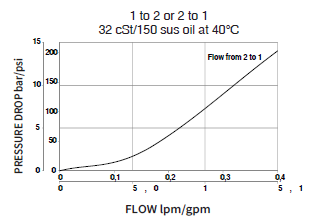

PERFORMANCE:

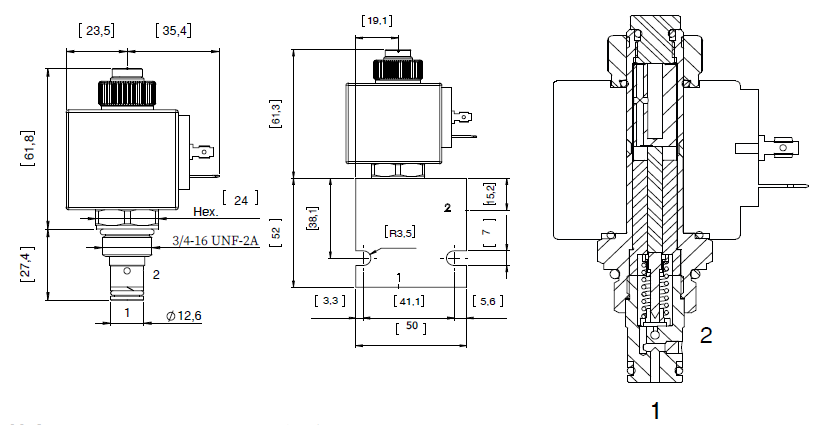

DIMENSIONS:

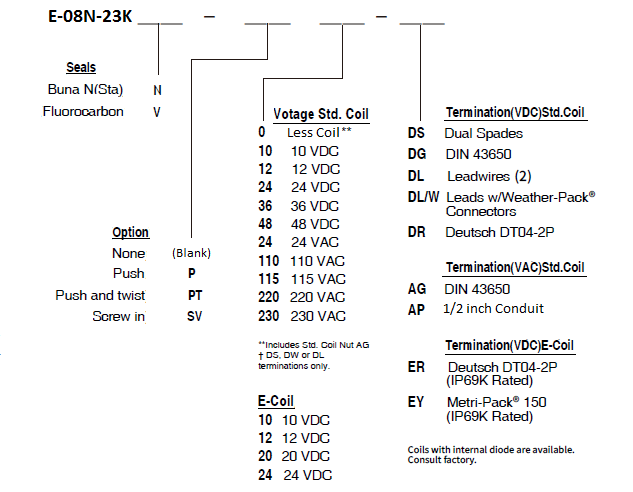

ORDER CODE:
