SYMBOL
DESCRIPTION:
A solenoid-operated, 2-way, normally closed, piloted poppet-type, screw-in hydraulic cartridge valve, intended to act as a blocking or load-holding device for low flow circuirts.
OPERATION:
When de-energized, the E-SV2-08-2NCP acts as a check valve, allowing flow from port 1 to port 2, while blocking flow from port 2 to port 1. When energized, the valves poppet lifts to open the port 2 to port 1 flow path.
Operation of Manual Override Option: To override, twist counterclockwise 2 turns. To return to normal operation, twist clockwise 2 turns.
FEATURES:
* Continous-duty rated coil.
* Hardened seat for long life and low leakage.
* Optional coil voltages and terminations.
* Cartridges are voltage interchangable.
* Unitized, molded coil design.
* Manual override option.
* Optional waterproof E-Coils rated up to IP69K.
* Industry common cavity.
* Compact size.
SPECIFICATIONS:
Max. Operating Pressure: 207 bar (3000 psi)
Flow: 18.9 lpm (5 gpm)
Internal Leakage: 2 drops/min. max. at 207 bar (3000 psi)
Temperature: - 40°C ~ 120 °C (with Standard Buna N seals)
Coil Duty Rating: Continuous from 85% to 115% of nominal voltage
Minimum Pull-in Voltage: 85% of nominal at 207 bar (3000 psi);
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus);
Cavity: VC08-2
PERFORMANCE:

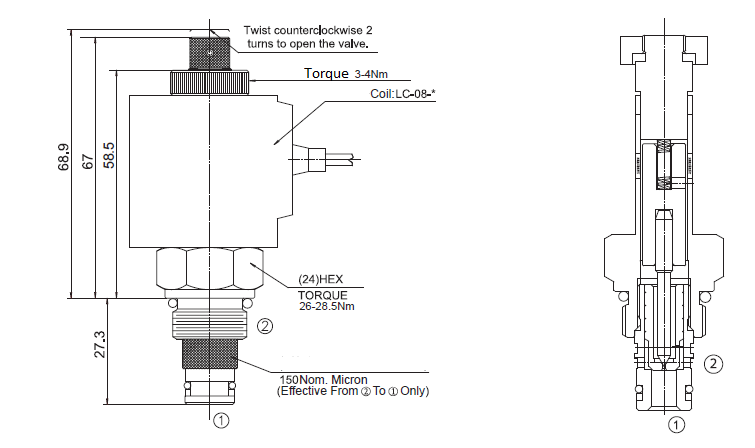

DIMENSIONS:

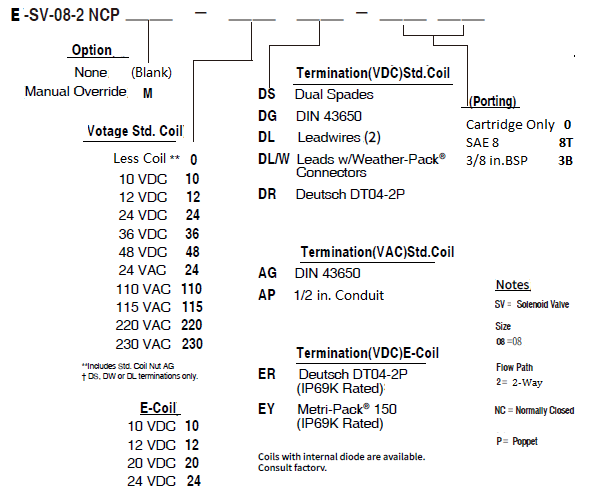

ORDER CODE:
