SYMBOL
DESCRIPTION
A solenoid-operated, electrically-variable, three-port, pressure-compensated, spool type, normally closed when de-energized, proportional flow control valve. It can be used as a priority-type flow regulator with pressure-compensated, regulated and bypass flow. It can also be used as a restrictive-type 2-way, pressure-compensated flow regulator when the bypass line (port 2) is blocked.
OPERATION
The E-PV72-30 will regulate flow out of port 3 regardless of system workign pressure. With an increasing current applied to the solenoid, the E-PV72-30 will increase output flow.
Note: When used as a bypass flow control in applications where the priority flow port will be blocked by external valving, bypass pressure drop will increase unless a small amount of leakage is provided for the priority port. Consult factory.
Operation of Manual Override: To Engage: Turn clockwise approximately 1 turn to reach start point. Continue another approximately 5 turns to full shift. To Disengage: Turn counterclockwise approximately 6 turns to positive stop.
FEATURES
* Excellent linearity and hysteresis characteristics.
* Optional coil voltages and terminations.
* Efficient wet-armature construction.
* Cartridges are voltage-interchangeable.
* Unitized, molded coil design.
* Coil waterproofing standard.
* Manual Override option.
SPECIFICATIONS:

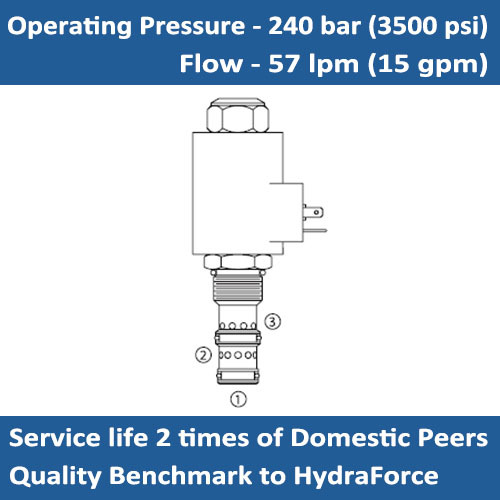

Operating Pressure: Port 1: 240 bar (3500 psi); Port 2 and 3: 207 bar (3000 psi)
3 Ported Flow: 0 to 57 lpm (0 to 15.0 gpm) Note: For "A" flow range
0 to 38 lpm (0 to 10.0 gpm) Note: For "B" flow range
3 Ported Max. Input Flow: 114 lpm (30 gpm) Note: For flow range "A" and "B".
2 Ported Max. Input Flow: 53 lpm (14 gpm) Note: For flow range "A"
31 lpm (8 gpm) Note: For flow range "B"
Note: To increase the flow rate of the 2 Ported flow control, refer to PV72-20 model

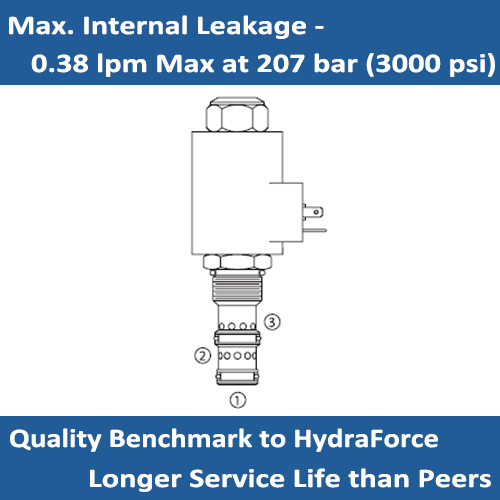

Internal Leakage: 0.38 lpm (0.1 gpm) Note: Max. at 207 bar (3000 psi), 0 current
Electrical Parameters (2 standard voltage ratings):
| Coil Voltage | Threshold Current | Max.Control Corrent |
| 12 VDC | 350 ± 100 mA | 1600 ± 75 mA |
| 24 VDC | 175 ± 50 mA | 800 ± 150 mA |
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus);
Cavity: VC12-3
PERFORMANCE:
DIMENSIONS
ORDER CODE:
