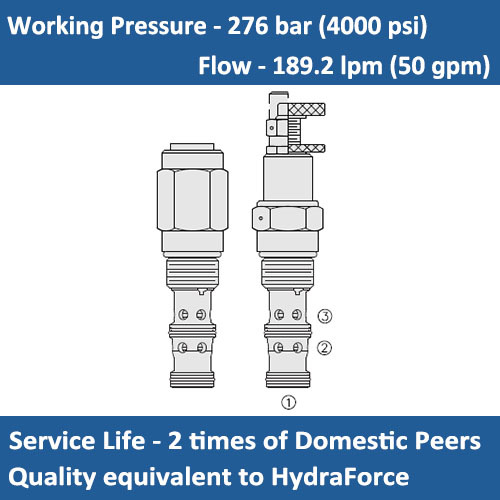

The E-PR12-36 is a spool type, pilot operated, hydraulic pressure reducing/relieving valve with internal pilot and internal spring chamber drain, designed to act as a pressure regulating device for secondary circuits.
OPERATION
In its steady state, the E-PR12-36 allows flow to pass bidirectionally from port 2 to port 1, with the spring chamber constantly drained at port 3. Upon attainment of a predetermined pressure at port 1, the spool shifts to restrict inlet flow from port 2, thereby regulating pressure at port 1. In this mode the valve will also relieve port 1 to port 3.
Flow Path: Reducing: 2 to 1; Relieving: 1 to 3.
FEATURES
* Adjustments cannot be backed out of the valve.
* Adjustments prohibit springs from going solid.
* Optional spring ranges to 207 bar (3000 psi).
SPECIFICATIONS:
Working Pressure: Ports 1 and 2: 276 bar (4000 psi)
Max. Tank Pressure: Port 3: 69 bar (1000 psi)

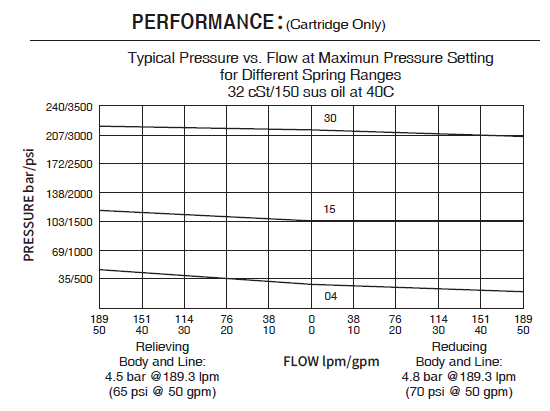

Flow: 189 L/min (50 gpm) see performance chart
Standard Spring Ranges (Reducing Function):
6.9 ~ 27.6 bar (100 ~ 400 psi)
6.9 ~ 103 bar (100 ~ 1500 psi)
12.1 ~ 207 bar (175 ~ 3000 psi)
Temperature Range: -40°C ~ +120 °C (with Buna N seals)
Fluids: Mineral based or synthetic hydraulic fluid with lubricating properties
Fluid viscosity range: 7.4 to 420 cSt (50 to 2000 ssu)
Cavity: VC12-3

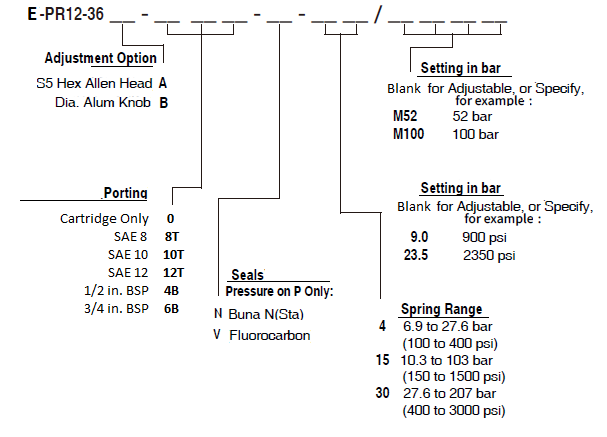

ORDER CODE:
