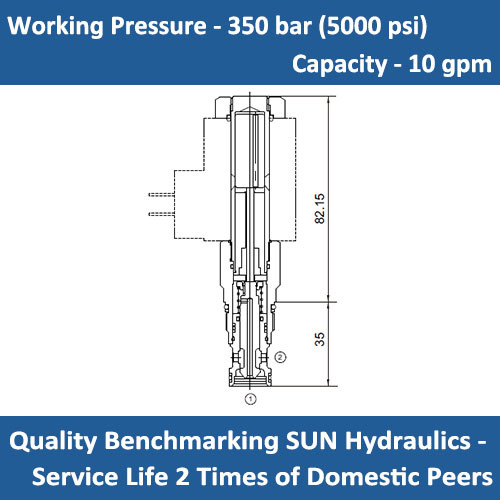

E-DTDF-*C* 2-way, direct-acting, solenoid-operated directional blocking poppet valve
SYMBOL
OPERATION:
When de-energized , the valve blocks flow in both directions.
When energized, the spool opens to allow oil fluid flow from port② to port① or from port① to port② .
This valve is suitable for load holding applications when using the Normally Closed option. In the event of power failure, the valve will spring closed.
FEATURES:
* Valves exhibit extremely low leakage rates.
* This valve utilizes a wet armature design.
* This valve is direct actuated and requires no minimum hydraulic pressure for operation.
SPECIFICATIONS:
Pressure Rating: 350 bar (5000 psi)
Flow: 40 L/mim (10 gpm)
Response Time - Typical: 50 ms
Internal Leakage: 10 drops/min. @5000 psi
Temperature: - 30 °C to ~ +120 °C (with Standard Buna N seals)
Cavity: T-13A
Fluids: Mineral-based fluids with viscosities of 7.4 to 420 cSt.

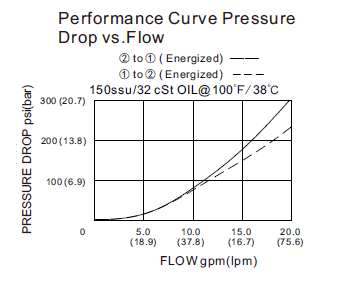

PERFORMANCE:

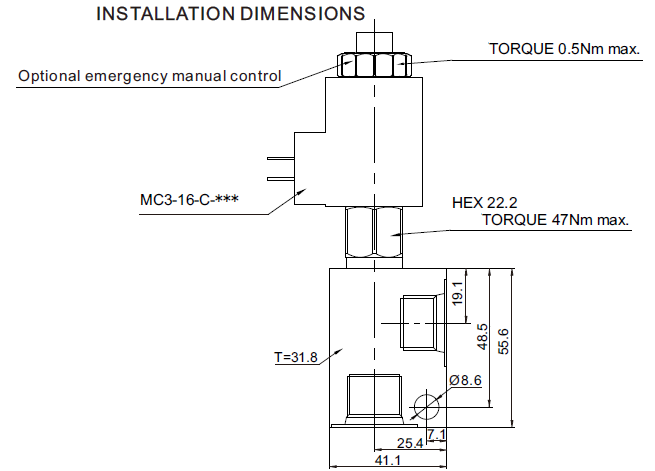

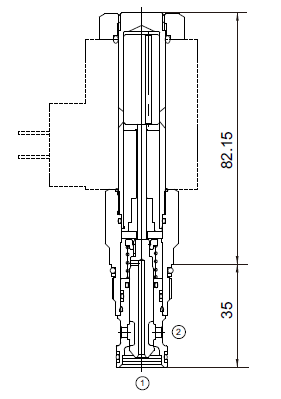

DIMENSIONS

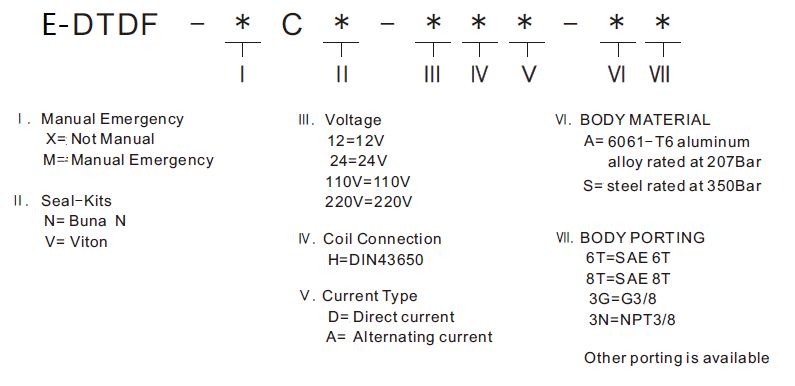

ORDER CODE:
