E-DTBF-*H* 2-way, direct-acting, solenoid-operated directional blocking poppet valve
SYMBOL
OPERATION:
When energized , the valve blocks flow in both directions. When de-energized, the spool opens to allow oil fluid flow from port ②to port① or from port① to port② . This valve is suitable for load holding applications when using the Normally Closed option. In the event of power failure, the valve will spring closed.
FEATURES:
* Valves exhibit extremely low leakage rates.
* This valve utilizes a wet armature design.
* This valve is direct actuated and requires no minimum hydraulic pressure for operation.
* Higher flow rates than competing valves of similar size.
SPECIFICATIONS:
Pressure Rating: 350 bar (5000 psi)
Flow: 34 L/min (9 gpm)
Response Time - Typical: 50 ms
Internal Leakage: 10 drops/min. @ 5000 psi
Temperature: - 30 °C ~ +120 °C (with Standard Buna N seals)
Cavity: T-162A
Fluids: Mineral-based fluids with viscosities of 7.4 to 420 cSt.

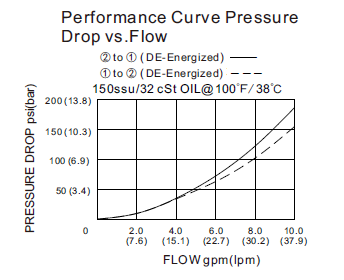

PERFORMANCE:

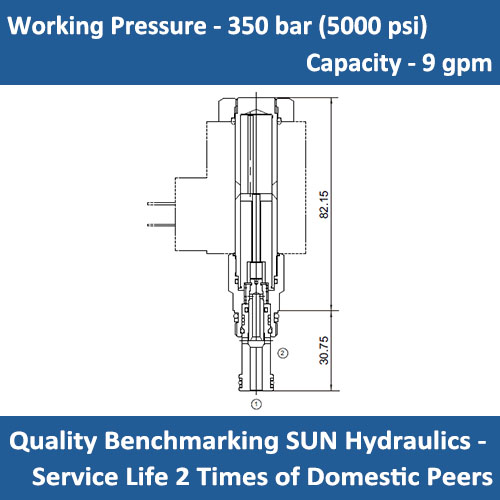

DIMENSIONS
ORDER CODE:
